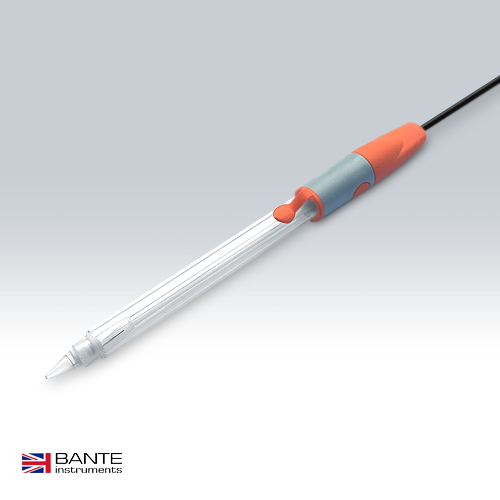

P18 pH Electrode

Soil pH electrode, suitable for measuring the slurry and soil samples.

Features:
• Refillable pH electrode
• Spear tip pH-sensitive membrane
• Ceramic liquid junction

Recommended Applications:
• Field use
• Slurries
• Soils

   Model


P18

   Range


0 to 14 pH

   Response Time


95% response in 30 seconds

   Operating Temperature


0 to 80°C / 32 to 176°F

   Reference


AgCl, single junction

   Liquid Junction


Annular ceramic

   Body Type


Glass

   Cable Length


1 m / 3.3 ft

   Connector


BNC

   Dimensions


120 × 12(Ø) mm

   Weight


80 g

   Ordering Code

Electrode Includes

   P18

---

Items Description
pH Electrode Storage Solution For electrode maintenance and storage

   Ordering Code

Dimensions and Weights

   P18

23 × 10 × 5 cm, 0.1 kg
