ECscan30 Pocket Conductivity/TDS Tester

Multiparameter pocket conductivity/TDS meter, 1 to 3 points calibration, Automatic Temperature Compensation, setup menu contains 6 options, accuracy: 1% F.S.

Features:
• Multiparameter pocket TDS meter contains the conductivity measurement modes.
• Platinum conductivity cell provides the quick and reliable measurement results.
• 1 to 3 points calibration with automatic recognition for conductivity standards.
• Automatic temperature compensation corrects conductivity measurment to reference
  temperature.

Pocket Conductivity TDS Meter

• Auto-Read function senses and locks the measurement endpoint.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, TDS factor, temperature unit, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.

   Model


ECscan30

   Conductivity



   Range


0 to 20.00, 200.0, 2000 µS/cm, 20.00 mS/cm

   Resolution


0.01, 0.1, 1, automatic

   Accuracy


±1% F.S.

   Calibration Points


1 to 3 points

   Calibration Solutions


84 µS / 1413 µS / 12.88 mS

   TDS



   Range

0 to 10.00, 100.0, 1000 ppm, 20.00 ppt

   Resolution

0.01, 0.1, 1, automatic

   Accuracy

±1% F.S.

   TDS Conversion Factor

0.1 to 1.0 (default 0.5)

   Temperature



   Range


0 to 60°C / 32 to 140°F

   Resolution


0.1°C/°F

   Accuracy


±1°C / ±1.8°F

   Offset Calibration


1 point

   Calibration Range


Reading ±10°C/°F

   Other Specifications



   Temperature Compensation


0 to 60°C / 32 to 140°F, automatic

   Temperature Coefficient


2%/°C

   Reference Temperature


25°C

   Cell Constant


K=1

   Hold Function


Manual / Auto-read measurement endpoint

   Auto-Power Off


8 minutes after last key pressed

   Display


Dual-line LCD (21 × 21 mm)

   Power Supply


2 × 1.5V AAA batteries

   Battery Life


Approximately 200 hours of continuous use

   Environmental Conditions


0 to 50°C / 32 to 122°F, relative humidity < 80%

   Dimensions


185 × 40(Ø) mm

   Weight


100 g

   Ordering Code

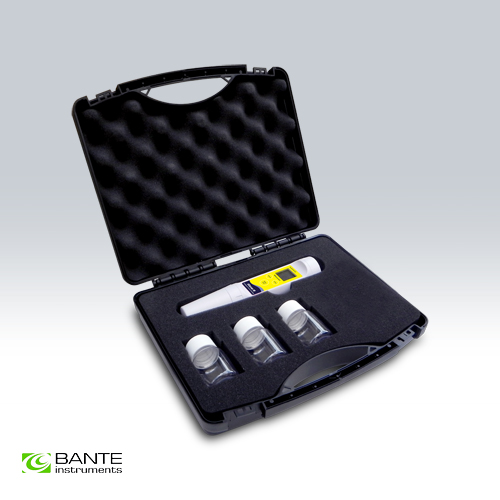

Tester Includes

   ECscan30

Conductivity standard solutions 84 µS/cm, 1413 µS/cm, 12.88 mS/cm

Carrying case

Items Description
E-ECSCAN-C1-10K Electrode Platinum cell conductivity electrode
Conductivity Standard Solutions For conductivity calibration

   Ordering Code

Dimensions and Weights

   ECscan30

28 × 8 × 25 cm, 1.5 kg
