ORP Meters

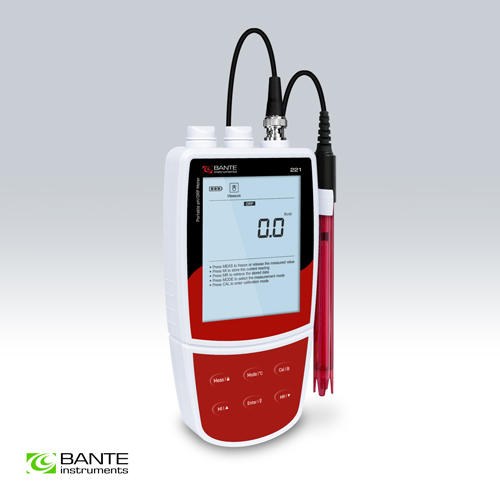

Bante221 Portable ORP Meter
Professional portable ORP meter, 1 point calibration, setup menu contains 10 options, accuracy 0.2 mV.
Features:
ORP
• 1 point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt modes ensure the reliable oxidation-reduction potential
measurements.
pH
• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
• Automatic electrode diagnosis shows the pH slope and zero offset.
• Automatic temperature compensation ensures accurate readings over the entire range.
Other Features
• Auto-read function senses and locks the measurement endpoint.
• Calibration due alarm reminds user to calibrate the meter regularly.
• Auto-power off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, resolution, stability criteria, date
and time, etc.
• Reset function automatically restores all settings to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface enables easy data transfer to a PC.
• DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
• Multi-mode power scheme (batteries, power adapter, USB port) ensures the smooth operation
of the meter.
Model | Bante221 | |
ORP | ||
Range | -1999.9 to 1999.9 mV | |
Resolution | 0.1 / 1, selectable | |
Accuracy | ±0.2 mV | |
Calibration | 1 point | |
Measurement Modes | Relative / Absolute mV | |
pH | ||
Range | -2.000 to 20.000 pH | |
Resolution | 0.001 / 0.01 / 0.1, selectable | |
Accuracy | ±0.002 pH | |
Calibration | 1 to 5 points | |
pH Buffer Options | USA / NIST / DIN / 2 custom buffers | |
Temperature | ||
Range | 0 to 105°C / 32 to 221°F | |
Resolution | 0.1 | |
Accuracy | ±0.5°C / ±0.9°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
Hold Function | Manual / Auto-read measurement endpoint | |
Stability Criteria | Low / High | |
Calibration Due Alarm | 1 to 31 days or off | |
Auto-Power Off | 10 / 20 / 30 minutes after last key pressed | |
Memory | Stores up to 500 data sets | |
Output | USB communication interface | |
Connector | BNC, 3.5 mm jack socket | |
Display | Custom LCD (80 × 60 mm) | |
Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
Battery Life | Approximately 150 hours without backlight | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 170 × 85 × 30 mm | |
Weight | 300 g |

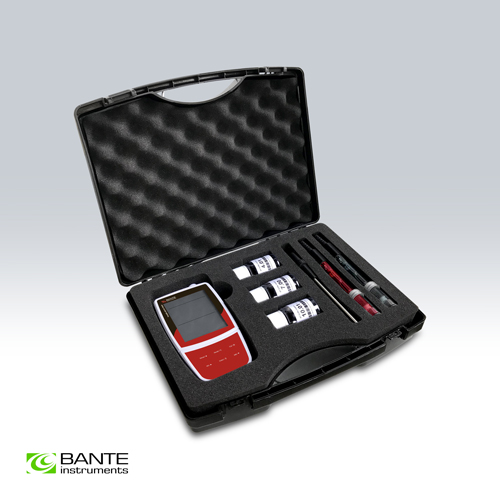

Ordering Code | Meter Includes |
Bante221-ORP | E201-BNC pH electrode |
E501-BNC ORP electrode | |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
| Electrode clip | |
Carrying case |
| Items | Description |
| E501 ORP Electrode | For measuring samples with strong redox potential |
| E502 ORP Electrode | For measuring samples with weak redox potential |
| E504 ORP Electrode | For measuring general or mildly corrosive samples |
| ORP Standard Solution | For calibrating ORP electrode |
| USB Cable | For transferring data or connecting power adapter |
| 5V DC Power Adapter | For connecting external power source |
Ordering Code | Dimensions and Weights |
Bante221-ORP | 35 × 10 × 30 cm, 1.5 kg |
