Dissolved Oxygen Meters

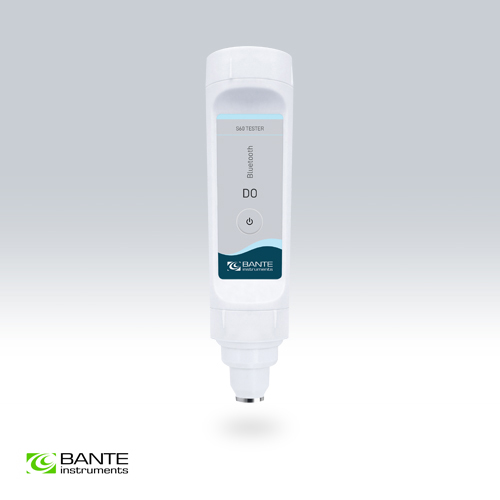

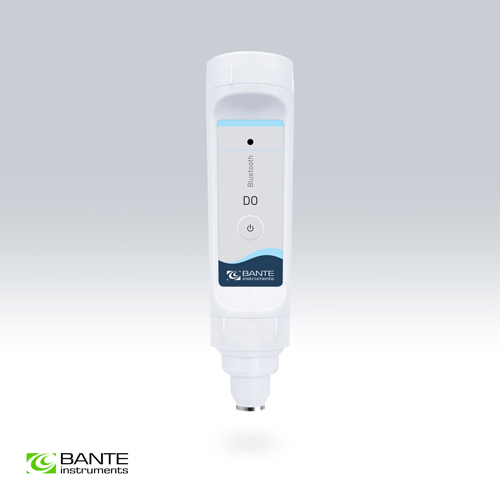

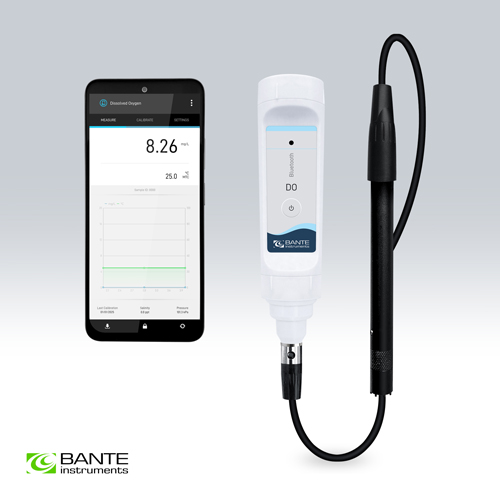

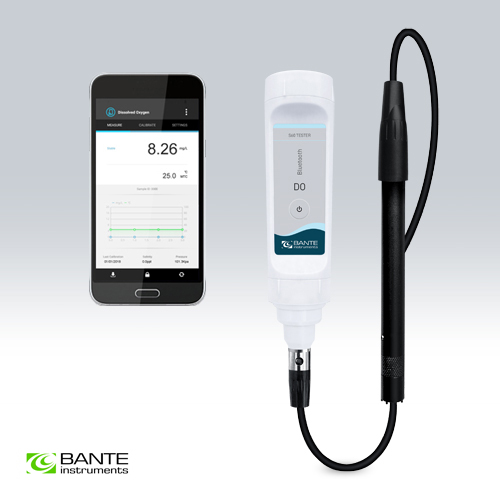

S60 Bluetooth Dissolved Oxygen Meter

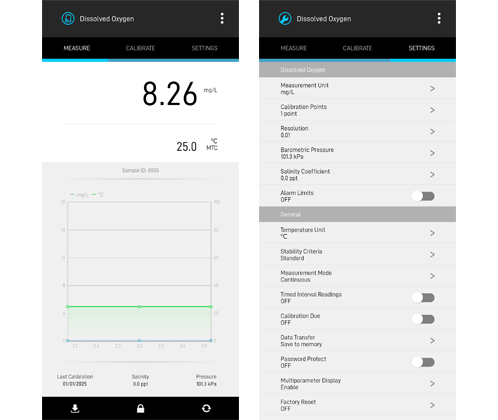

High-performance bluetooth dissolved oxygen meter is suitable for Android smartphone or tablet, the tester contains BOD, OUR, SOUR measurement modes, accuracy: 0.2 mg/L.

Features:
• High-performance bluetooth dissolved oxygen meter comes with a polarographic electrode.
• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Salinity and barometric pressure compensations eliminate measurement errors.
• Selectable testing time and beginning/ending dissolved oxygen are used to calculate OUR
  (oxygen uptake rate) and SOUR (specific oxygen uptake rate).
• Data management provides detailed BOD information, including date, time, temperature,
  initial and final dissolved oxygen.
• Automatic temperature compensation ensures accurate readings over the entire range.

Bluetooth Dissolved Oxygen Meter

• Auto-read function senses and locks the measurement endpoint.
• Timed interval readings send measurement data to memory or a printer.
• Limit alarm automatically alerts when measurements exceed the specified range.
• Calibration due alarm reminds user to calibrate the tester regularly.
• Password protection prevents unauthorized calibration and settings.
• Multiparameter measurement enables for connecting the S10 pH and S50 conductivity
  testers and displaying measurement readings simultaneously.
• Reset function automatically restores all settings to the factory defaults.

   Model


S60

   Dissolved Oxygen



   Range


0.00 to 20.00 mg/L

   Resolution


0.01 / 0.1 mg/L, selectable

   Accuracy


±0.2 mg/L

   % Saturation of Oxygen



   Range


0.0 to 200.0%

   Resolution


0.1%

   Accuracy


±2.0%

   Other Specifications



   Calibration


1 or 2 points

   Temperature Compensation


0 to 50°C / 32 to 122°F, automatic

   Pressure Correction


60.0 to 113.3 kPa / 450 to 850 mmHg, manual

   Salinity Correction


0.0 to 50.0 g/L, manual

   Additional Applications


BOD / OUR / SOUR

   Stability Criteria


Fast / Standard / Slow

   Measurement Modes


Continuous / Auto-read measurement endpoint

   Timed Interval Readings


10 / 30 / 60 / 300 seconds or off

   Calibration Due Alarm


1 to 99 days or off

   High/Low Limit Alarm


Selectable

   Data Transfer


Memory / Printer

   Password Protection


6 digits

   Connectivity


Bluetooth 4.0 or newer

   Maximum Wireless Range


10 m / 33 ft

   Power Supply


2 × 1.2V rechargeable batteries

   Environmental Conditions


0 to 50°C / 32 to 122°F, relative humidity < 80%

   Dimensions


175 × 40(Ø) mm

   Weight


100 g

   Ordering Code

Tester Includes

   S60



DO100 dissolved oxygen electrode

DO electrolyte solution

DO membrane cap

USB cable
5V DC power adapter

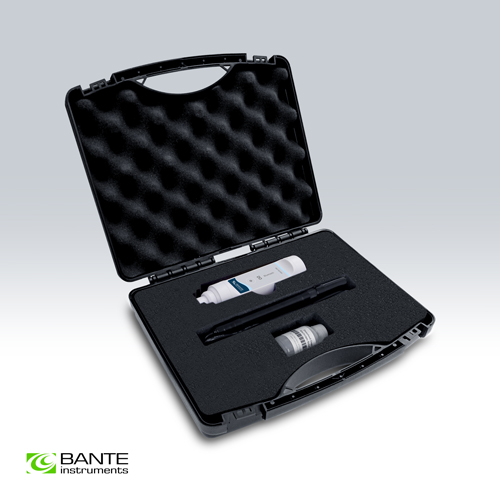

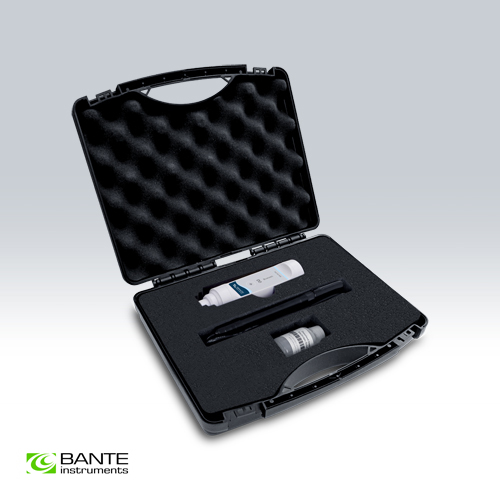

Carrying case

Items Description
DO100 Dissolved Oxygen Electrode For measuring the DO and % saturation of oxygen
DO Electrolyte Solution For filling the dissolved oxygen electrode
DO Membrane Cap For polarographic dissolved oxygen electrode
Bluetooth Printer For printing the measurement data

   Ordering Code

Dimensions and Weights

   S60

28 × 8 × 25 cm, 1.5 kg
