Electrodes

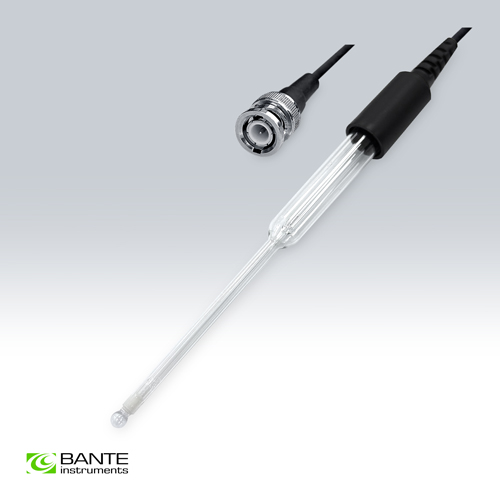

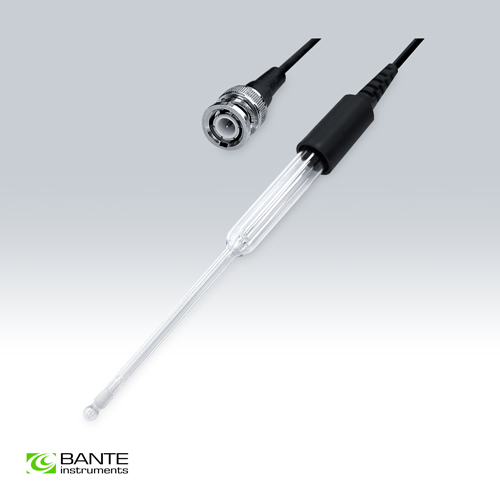

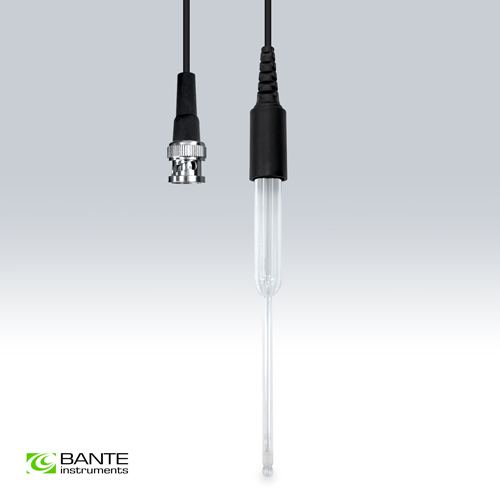

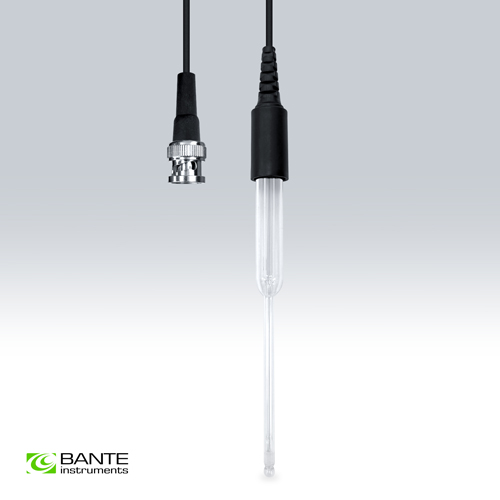

E206-BNC pH Electrode
Micro pH electrode, suitable for measuring solutions in test tubes or small containers.
Features:
• Combination glass pH electrode
• 5 millimeter pH-sensitive membrane
• Ceramic liquid junction
Typical Samples:
Micro-volume samples
Model | E206-BNC | |
Range | 0 to 14 pH | |
Response Time | 95% response in 30 seconds | |
Operating Temperature | 0 to 80°C / 32 to 176°F | |
Reference | Ag/AgCl, single junction | |
Liquid Junction | Frit ceramic | |
Body Type | Glass | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 80 × 5(Ø) mm | |
Weight | 65 g |
Ordering Code | Electrode Includes |
E206-BNC | --- |
| Items | Description |
| pH Buffer Solutions | For calibrating pH electrode |
| pH Electrode Cleaning Solutions | For electrode cleaning and reactivating |
| pH Electrode Storage Solution | For electrode maintenance and storage |
Ordering Code | Dimensions and Weights |
E206-BNC | 23 × 10 × 5 cm, 0.1 kg |
