Electrodes

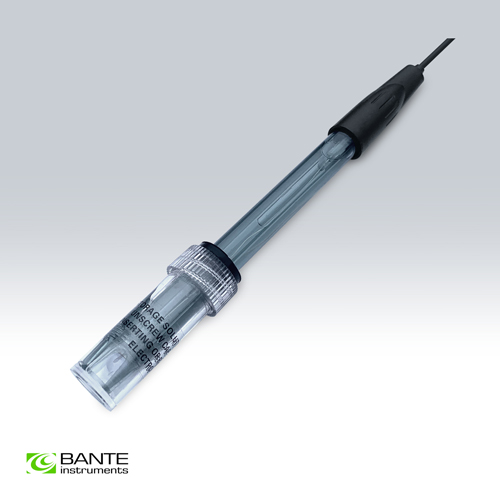

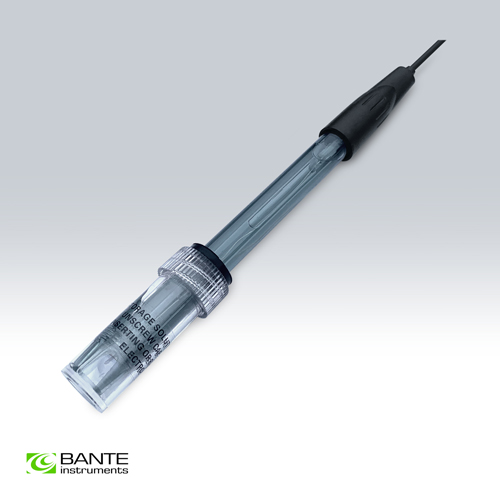

E203-BNC pH Electrode
Combination pH electrode with a built-in temperature sensor, suitable for outdoor applications.
Features:
• Round pH-sensitive membrane fully senses the pH of liquids
• Double reference design ensures faster response and stability

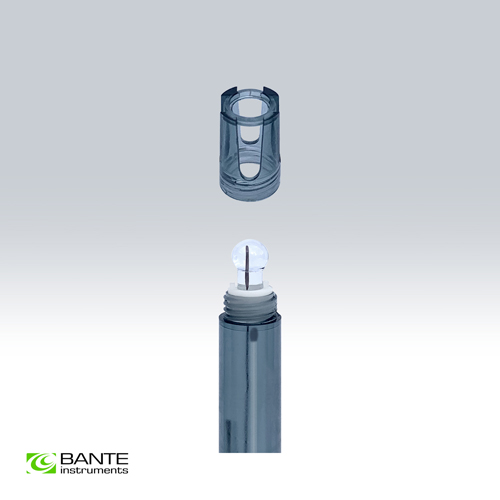

• Detachable protective shield for easy cleaning of the pH-sensitive membrane and reference
• Built-in temperature sensor
Typical Samples:
Environmental water samples
Model | E203-BNC | |
Range | 0 to 14 pH | |
Operating Temperature |
| 0 to 60°C / 32 to 140°F |
Reference |
| AgCl, single junction |
Liquid Junction |
| Fiber |
Temperature Sensor |
| NTC 10KΩ |
Body Type | Epoxy | |
Cable Length | 1 m | |

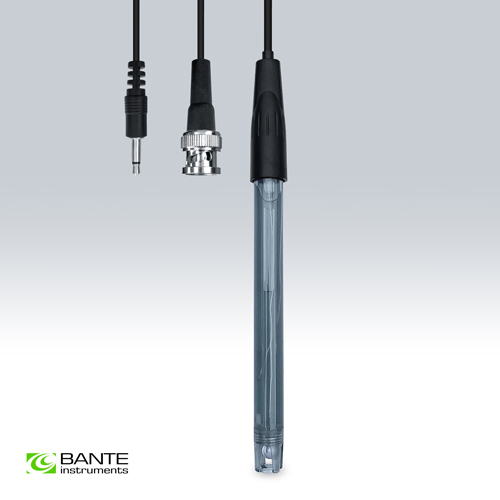

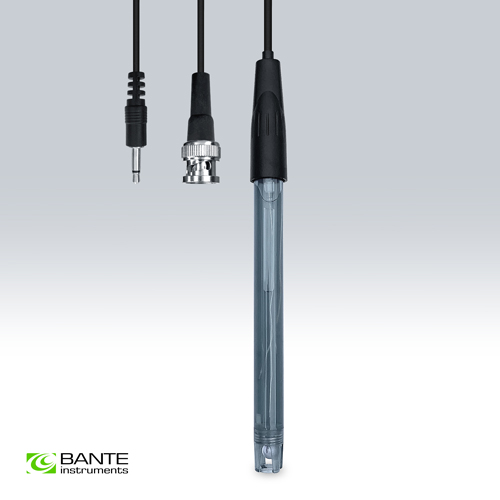

Connector | BNC, 3.5 mm jack plug | |
Dimensions | 120 × 12(Ø) mm | |
Weight | 60 g |
Ordering Code | Electrode Includes |
E203-BNC | --- |
| Items | Description |
| pH Buffer Solution | For calibrating pH electrodes |
| pH Electrode Cleaning Solution | For cleaning and reactivating pH electrodes |
| pH Electrode Storage Solution | For maintaining and storing pH electrodes |
Ordering Code | Dimensions and Weights |
E203-BNC | 23 × 10 × 5 cm, 0.1 kg |
