Electrodes

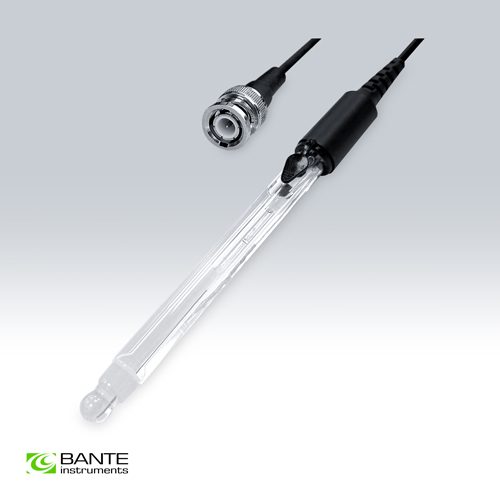

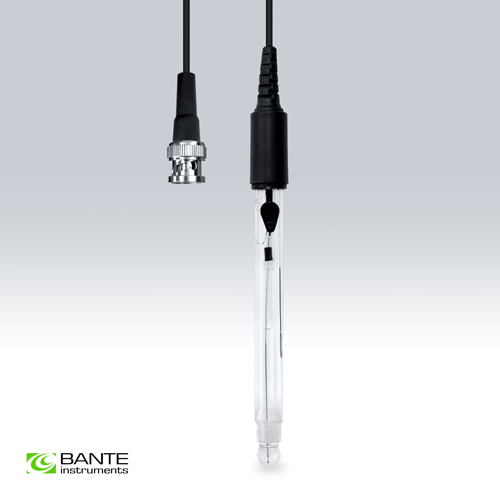

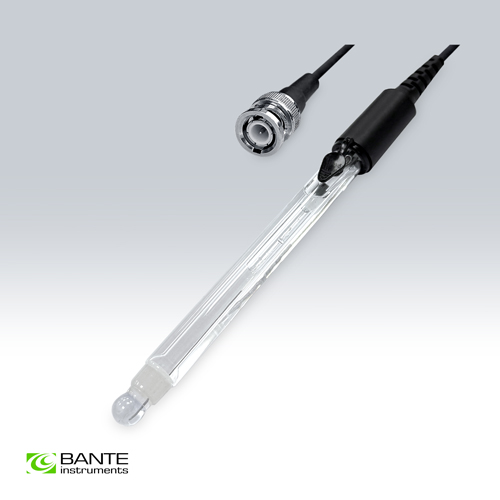

E207-BNC pH Electrode
Glass pH electrode, suitable for measuring non-aqueous solutions and organic solvents.
Features:
• Refillable pH electrode
• Round pH-sensitive membrane
• Ceramic liquid junction
• Glass body
Typical Samples:
Solutions containing organic solvents such as ethanol, acetone, toluene, ether, benzene, etc.
Model | E207-BNC | |
Range | 0 to 14 pH | |
Response Time | 95% response in 30 seconds | |
Operating Temperature | 0 to 80°C / 32 to 176°F | |
Reference | Ag/AgCl, double junction | |
Liquid Junction | Annular ceramic | |
Body Type | Glass | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 120 × 12(Ø) mm | |
Weight | 65 g |
Ordering Code | Electrode Includes |
E207-BNC | --- |
| Items | Description |
| pH Buffer Solution | For calibrating pH electrodes |
| pH Electrode Cleaning Solution | For cleaning and reactivating pH electrodes |
| pH Electrode Storage Solution | For maintaining and storing pH electrodes |
Ordering Code | Dimensions and Weights |
E207-BNC | 23 × 10 × 5 cm, 0.1 kg |
