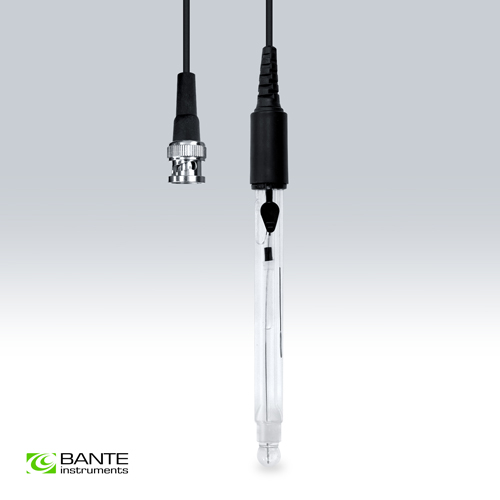

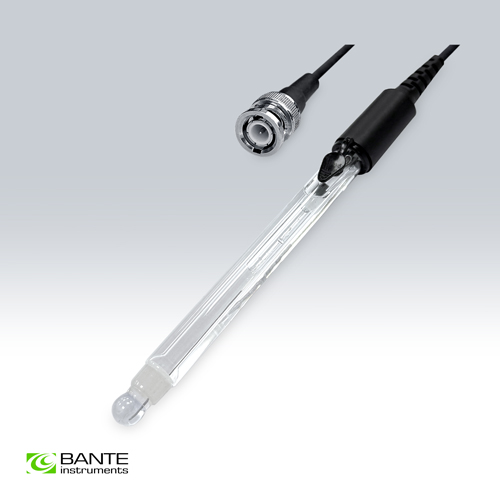

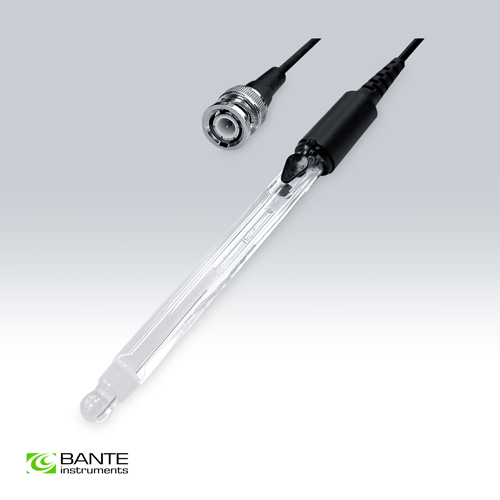

E208-BNC pH Electrode
Glass pH electrode, suitable for measuring strong acid and strong alkaline solutions.
Features:
• Refillable pH electrode
• Round pH-sensitive membrane
• Ceramic liquid junction
• Glass body
Typical Applications:
Metal pickling, dye and chemical production, acidic concentrates testing in food and beverages, soap making, pulp bleaching, detergent manufacturing, wastewater treatment, etc.
Model | E208-BNC | |
Range | 0 to 14 pH | |
Response Time | 95% response in 30 seconds | |
Operating Temperature | 0 to 80°C / 32 to 176°F | |
Reference | Ag/AgCl, single junction | |
Liquid Junction | Annular ceramic | |
Body Type | Glass | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 120 × 12(Ø) mm | |
Weight | 65 g |
Ordering Code | Electrode Includes |
E208-BNC | --- |
| Items | Description |
| pH Buffer Solution | For calibrating pH electrodes |
| pH Electrode Cleaning Solution | For cleaning and reactivating pH electrodes |
| pH Electrode Storage Solution | For maintaining and storing pH electrodes |
Ordering Code | Dimensions and Weights |
E208-BNC | 23 × 10 × 5 cm, 0.1 kg |
