Electrodes

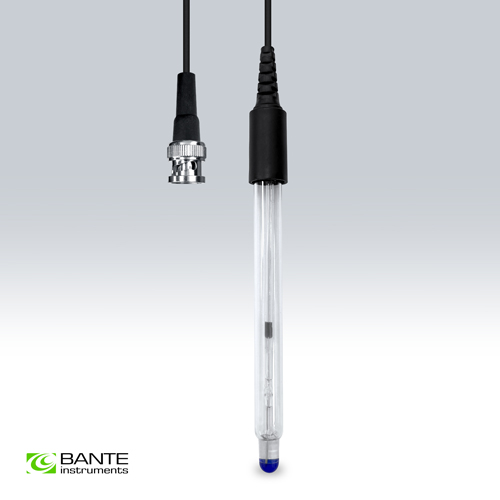

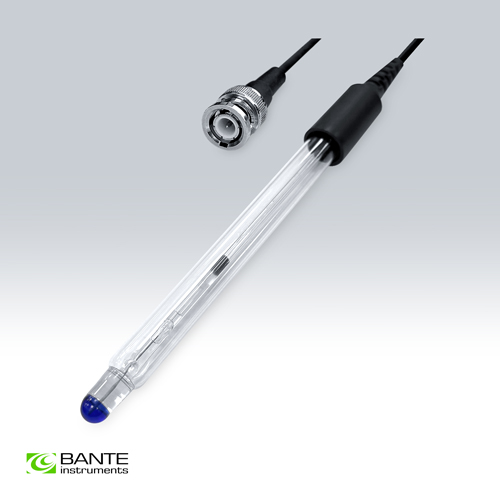

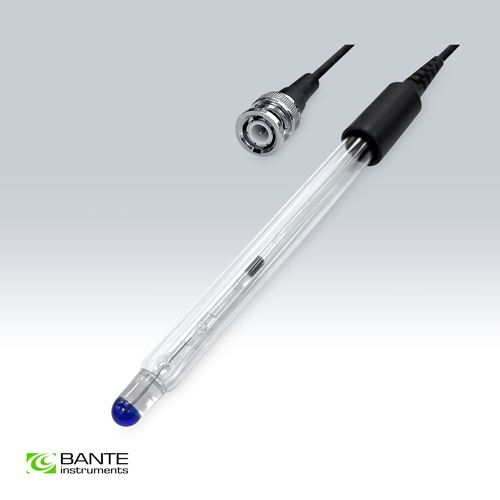

E209-BNC pH Electrode
Glass pH electrode, suitable for measuring solutions containing hydrofluoric acid.
Features:
• Combination glass pH electrode
• Circular pH-sensitive membrane
• Ceramic liquid junction
• Blue glass blub with good impact resistance
Typical Samples:
Solutions containing hydrofluoric acid (concentration must be less than 0.1 mol/L)
Model | E209-BNC | |
Range | 0 to 12 pH | |
Response Time | 95% response in 30 seconds | |
Operating Temperature | 0 to 80°C / 32 to 176°F | |
Reference | Ag/AgCl, double junction | |
Liquid Junction | Frit ceramic | |
Body Type | Glass | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 120 × 12(Ø) mm | |
Weight | 65 g |
Ordering Code | Electrode Includes |
E209-BNC | --- |
| Items | Description |
| pH Buffer Solutions | For calibrating pH electrode |
| pH Electrode Cleaning Solutions | For electrode cleaning and reactivating |
| pH Electrode Storage Solution | For electrode maintenance and storage |
Ordering Code | Dimensions and Weights |
E209-BNC | 23 × 10 × 5 cm, 0.1 kg |
