Electrodes

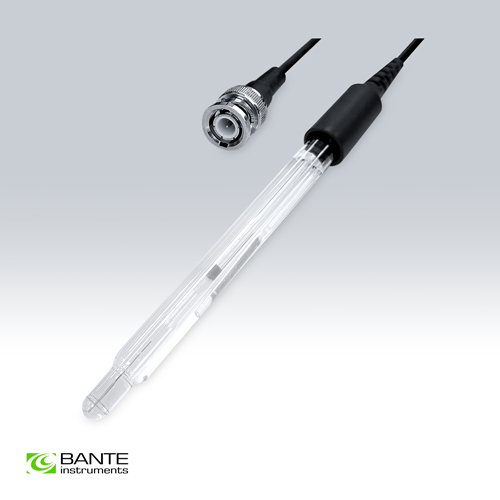

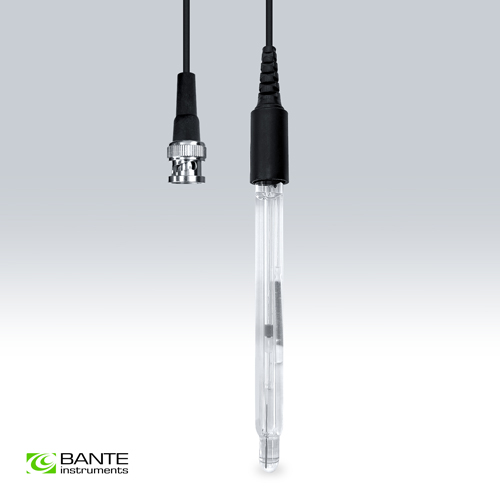

E211-BNC pH Electrode
Glass pH electrode, suitable for measuring pure water.
Features:
• Combination glass pH electrode
• Round pH-sensitive membrane
• Ion trap protects the reference system from interfering ion contamination
• Ceramic liquid junction
Typical Samples:
Pure water, deionized water, distilled water, drinking water, purified water, condensate water, rainwater, low-mineralized surface water, well water, etc.
Model | E211-BNC | |
Range | 0 to 14 pH | |
Response Time | 95% response in 30 seconds | |
Operating Temperature | 0 to 80°C / 32 to 176°F | |
Reference | AgCl, single junction | |
Liquid Junction | Frit ceramic | |
Body Type | Glass | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 120 × 12(Ø) mm | |
Weight | 65 g |
Ordering Code | Electrode Includes |
E211-BNC | --- |
| Items | Description |
| pH Buffer Solution | For calibrating pH electrodes |
| pH Electrode Cleaning Solution | For cleaning and reactivating pH electrodes |
| pH Electrode Storage Solution | For maintaining and storing pH electrodes |
Ordering Code | Dimensions and Weights |
E211-BNC | 23 × 10 × 5 cm, 0.1 kg |
