Ion Meters

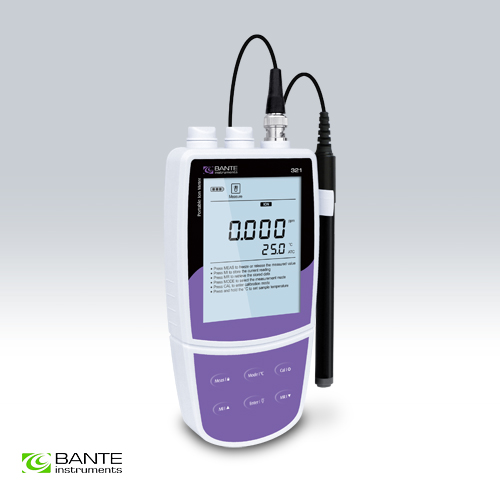

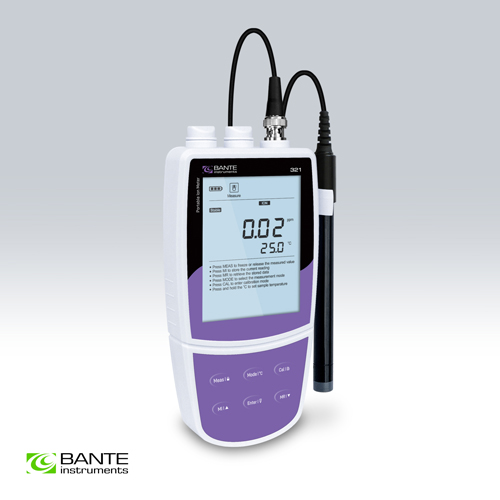

Bante321-F Portable Fluoride Ion Meter

Professional portable fluoride ion meter, suitable for outdoor applications, accuracy: 0.5% F.S.

Features:
• Professional portable fluoride ion meter is equipped with a backlit LCD display.
• 2 to 5 points calibration from low to high concentrations.
• Selectable 8 concentration calibration points, including the 0.001 to 10000.
• Selectable concentration units - ppm, mg/L and mol/L.
• Automatic electrode diagnosis shows the calibration points and slopes.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Direct ion concentration readout simplifies the measurement process.

Portable Fluoride Ion Meter

• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, stability criteria, temperature
  unit, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface for data transfer or connecting a power adapter to meter.

   Model


Bante321-F

   Ion Concentration



   Range


1×10-6M to saturation, 0.02ppm to saturation

   Resolution


0.001, 0.01, 0.1, 1

   Accuracy


±0.5% F.S.

   Calibration Points


2 to 5 points

   Calibration Solutions


0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000

   Measurement Units


ppm, mg/L, mol/L, mmol/L

   mV



   Range


±1999.9mV

   Resolution


0.1mV

   Accuracy


±0.2mV

   Temperature



   Range


0 to 105°C/32 to 221°F

   Resolution


0.1°C/0.1°F

   Accuracy


±0.5°C/±0.9°F

   Offset Calibration


1 point

   Calibration Range


Reading ±10°C

   General Specifications



   Temperature Compensation


0 to 100°C/32 to 212°F, manual or automatic

   Stability Criteria

Low or high

   Calibration Due Alarm

1 to 31 days or off

   Auto-Power Off

10, 20 or 30 minutes after last key pressed

   Memory

Stores up to 500 data sets

   Output

USB communication interface

   Connector

BNC, 3.5mm jack socket

   Display

Custom LCD (80×60mm)

   Power

3×1.5V AA batteries or DC5V power adapter

   Battery Life

Approximately 150 hours (turn off the backlight)

   Dimensions


170(L)×85(W)×30(H)mm

   Weight


300g

   Order Code

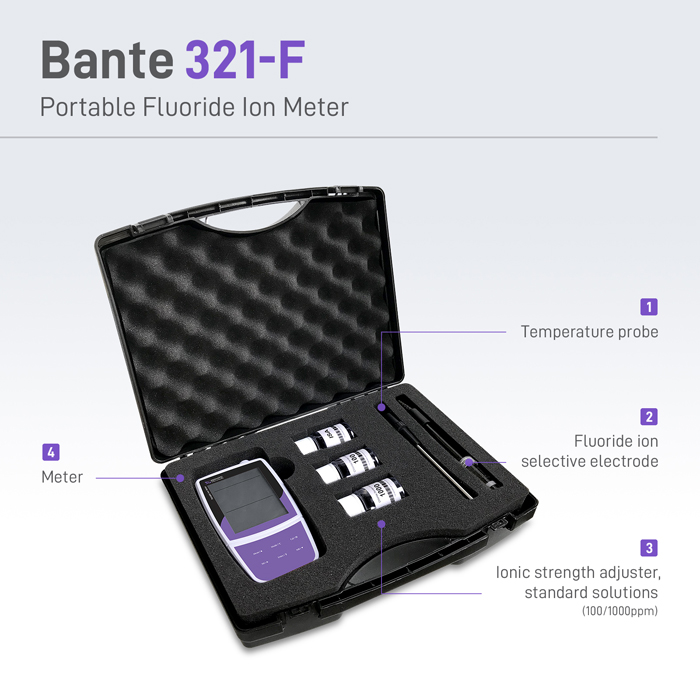

Accessories

   Bante321-F



F-US fluoride electrode

TP-10K temperature probe

Fluoride standard solutions 100, 1000ppm

Ionic strength adjuster

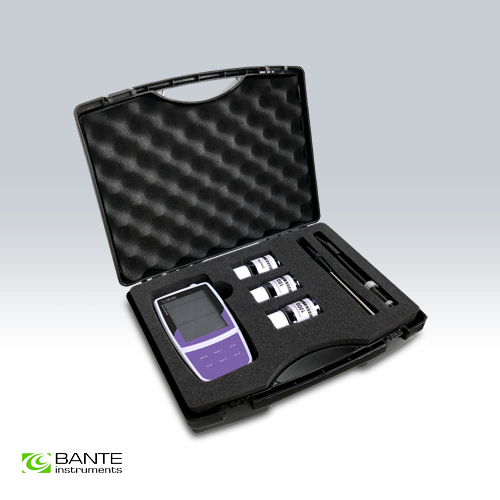

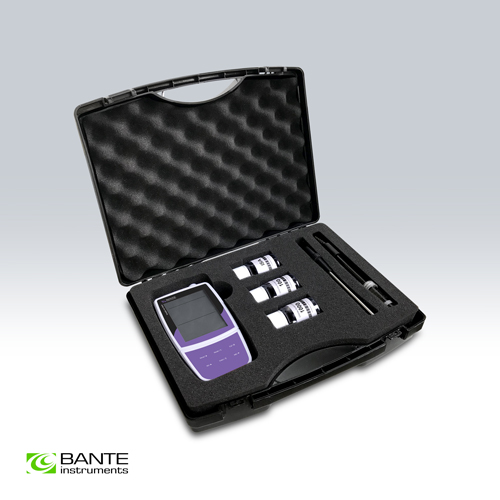

Carrying case

Items Description
F-US Fluoride Electrode Range: 0.02ppm to saturation
TP-10K Temperature Probe For the temperature measurement
Ion Standard Solutions 480ml/bottle
Ionic Strength Adjuster 480ml/bottle

   Order Code

Carton Dimensions (L×W×H)

Weight

   Bante321-F

340×290×80mm

1.5kg
