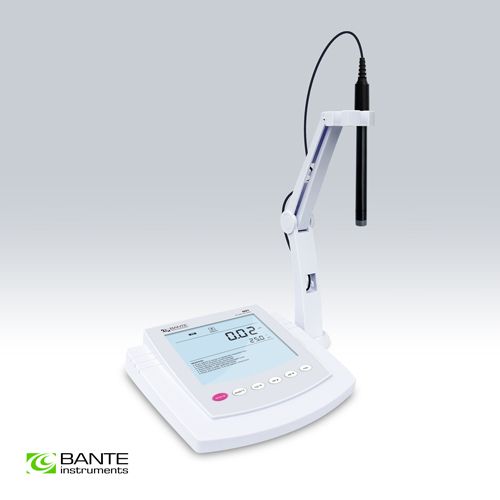

Bante931-F Benchtop Fluoride Ion Meter

Precision benchtop fluoride ion meter, suitable for laboratory applications, accuracy: 0.5% F.S.

• Precision benchtop fluoride ion meter is equipped with a large backlit LCD display.
• 2 to 5 points calibration, including the 8 concentration points can be selected.
• Direct ion concentration readout simplifies the measurement process.
• Selectable concentration units - ppm, mg/L and mol/L.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.

Fluoride Ion Meter

• Calibration due alarm prompts user to calibrate the meter regularly.
• Automatic electrode diagnosis shows the calibration points and slopes.
• Setup menu allows setting the number of calibration points, ionic valency, stability criteria,
  temperature unit, auto-power off, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface is easy to transfer data to PC.



   Ion Concentration


1×10-6M to saturation, 0.02ppm to saturation


0.001, 0.01, 0.1, 1


±0.5% F.S.

   Calibration Points

2 to 5 points

   Calibration Solutions

0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000

   Measurement Units

ppm, mg/L, mol/L, mmol/L










0 to 105°C/32 to 221°F





   Offset Calibration

1 point

   Calibration Range

Reading ±10°C

   General Specifications

   Temperature Compensation

0 to 100°C/32 to 212°F, manual or automatic

   Stability Criteria

Low or high

   Calibration Due Alarm

1 to 31 days or off


Stores up to 500 data sets


USB communication interface


BNC, 3.5mm jack socket


Custom LCD (125×100mm)


DC5V, using AC adapter, 220V/50Hz

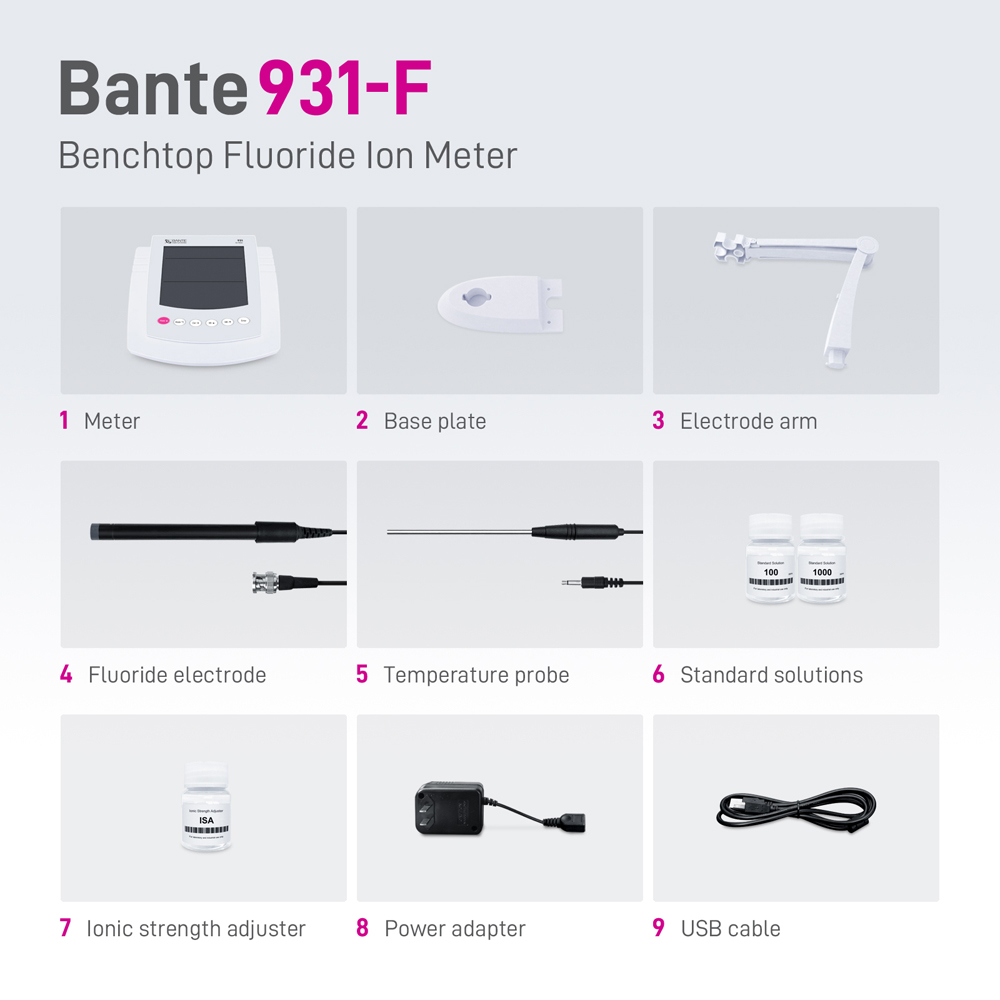

   Order Code




F-US fluoride electrode

TP-10K temperature probe

Fluoride standard solutions 100, 1000ppm

Ionic strength adjuster

USB cable

DC5V power adapter

Items Description
F-US Fluoride Electrode Range: 0.02ppm to saturation
TP-10K Temperature Probe For the temperature measurement
Ion Standard Solutions 480ml/bottle
Ionic Strength Adjuster 480ml/bottle

   Order Code

Carton Dimensions (L×W×H)
