Ion Meters

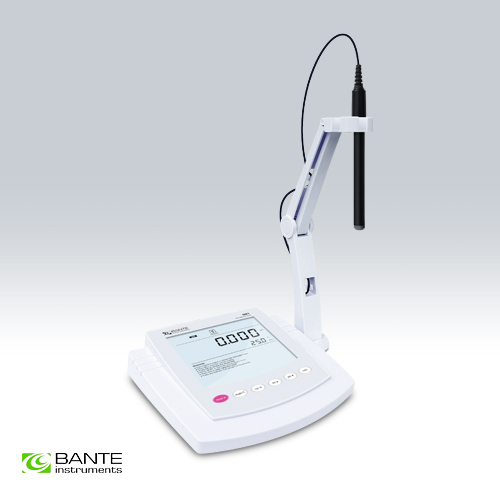

Bante931-CL Benchtop Chloride Ion Meter

Precision benchtop chloride ion meter, suitable for laboratory applications, accuracy: 0.5% F.S.

Features:
• Precision benchtop chloride ion meter is equipped with a large backlit LCD display.
• 2 to 5 points calibration, including the 8 concentration points can be selected.
• Direct ion concentration readout simplifies the measurement process.
• Selectable concentration units - ppm, mg/L and mol/L.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.

Chloride Ion Meter

• Calibration due alarm prompts user to calibrate the meter regularly.
• Automatic electrode diagnosis shows the calibration points and slopes.
• Setup menu allows setting the number of calibration points, ionic valency, stability criteria,
  temperature unit, auto-power off, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface is easy to transfer data to PC.

   Model


Bante931-CL

   Ion Concentration



   Range


5×10-6 to 1M, 1.8 to 35500ppm

   Resolution


0.001, 0.01, 0.1, 1

   Accuracy


±0.5% F.S.

   Calibration Points


2 to 5 points

   Calibration Solutions


0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000

   Measurement Units


ppm, mg/L, mol/L, mmol/L

   mV



   Range


±1999.9mV

   Resolution


0.1mV

   Accuracy


±0.2mV

   Temperature



   Range


0 to 105°C/32 to 221°F

   Resolution


0.1°C/0.1°F

   Accuracy


±0.5°C/±0.9°F

   Offset Calibration


1 point

   Calibration Range


Reading ±10°C

   General Specifications



   Temperature Compensation


0 to 100°C/32 to 212°F, manual or automatic

   Stability Criteria

Low or high

   Calibration Due Alarm

1 to 31 days or off

   Memory

Stores up to 500 data sets

   Output

USB communication interface

   Connector

BNC, 3.5mm jack socket

   Display

Custom LCD (125×100mm)

   Power

DC5V, using AC adapter, 220V/50Hz

   Dimensions

210(L)×188(W)×60(H)mm

   Weight

1.5kg

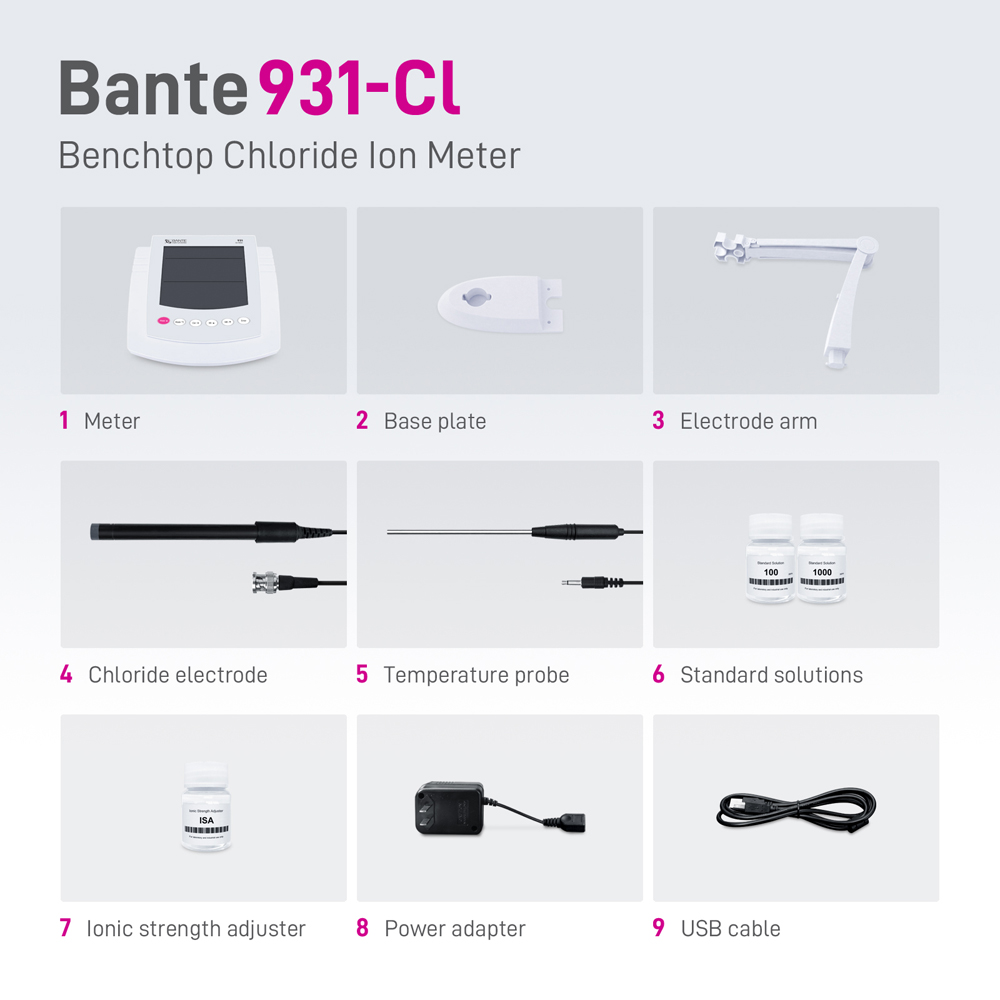

   Order Code

Accessories

   Bante931-CL



CL-US chloride electrode

TP-10K temperature probe

Chloride standard solutions 100, 1000ppm

Ionic strength adjuster

USB cable

DC5V power adapter

Items Description
CL-US Chloride Electrode Range: 1.8 to 35500ppm
TP-10K Temperature Probe For the temperature measurement
Ion Standard Solutions 480ml/bottle
Ionic Strength Adjuster 480ml/bottle

   Order Code

Carton Dimensions (L×W×H)

Weight

   Bante931-CL

310×260×200mm

1.7kg
