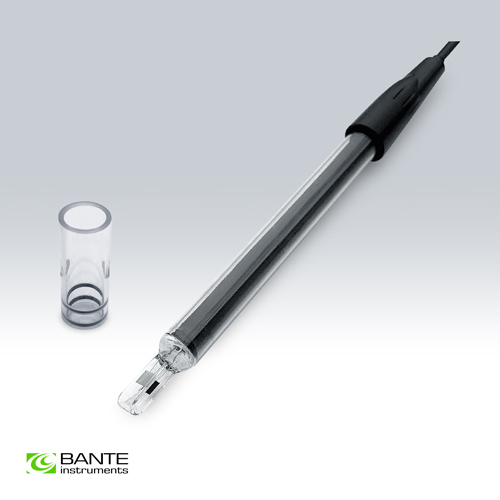

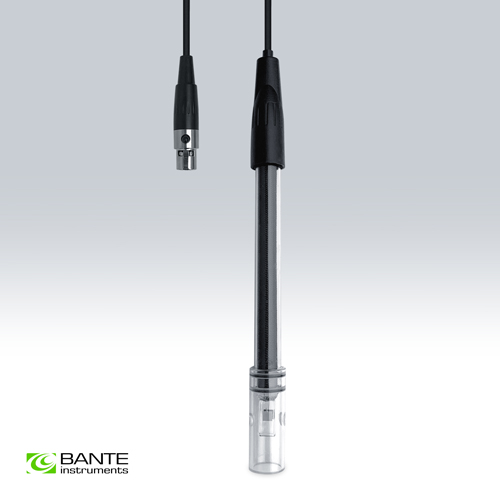

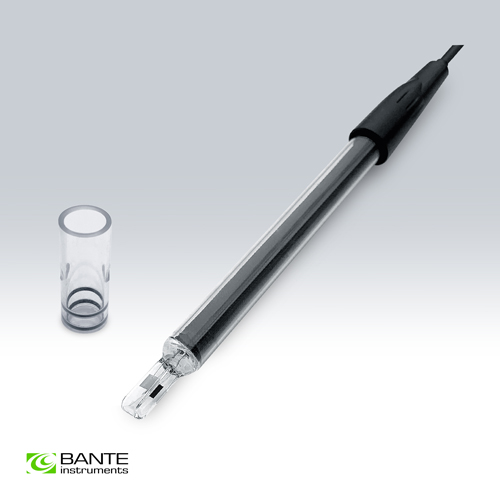

CON-1 Conductivity Electrode

Platinum conductivity electrode, suitable for measuring the general water samples.

Features:
• 2-pole platinum conductivity cell
• Cell constant (K)=1

   Model


CON-1

   Range


10 µS/cm to 20 mS/cm

   Operating Temperature


0 to 80°C / 32 to 176°F

   Material


Platinum sensor, glass body

   Cell Constant


K=1

   Connector


6-pin mini-DIN

   Cable Length


1 m / 3.3 ft

   Dimensions


150 × 12(Ø) mm

   Weight


80 g

   Ordering Code

Electrode Includes

   CON-1

---

Items Description
Conductivity Standard Solutions For conductivity calibration

   Ordering Code

Dimensions and Weights

   CON-1

23 × 10 × 5 cm, 0.1 kg
