Polarimeters

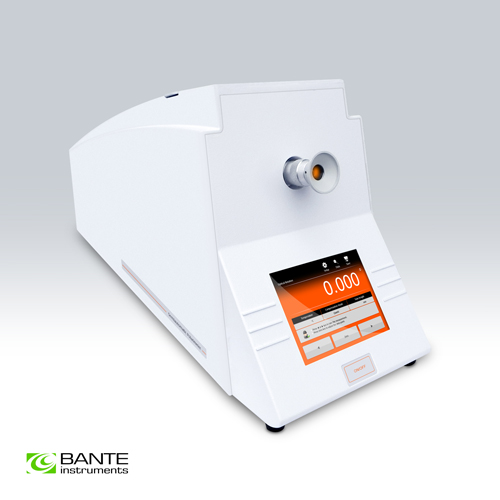

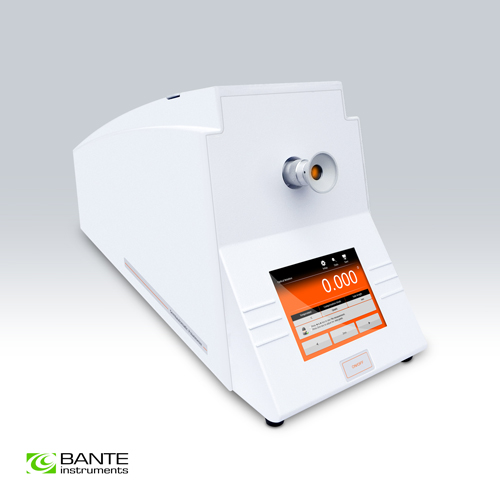

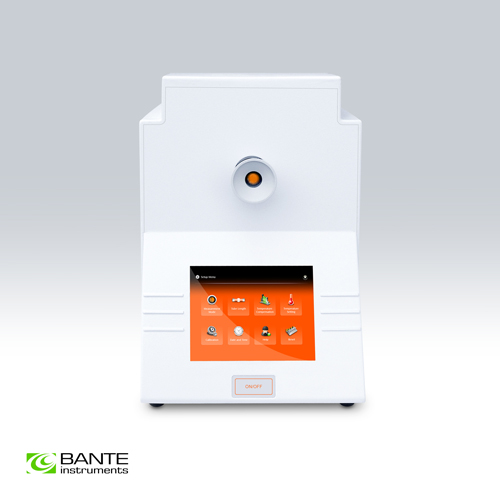

POL-200 Semiautomatic Polarimeter

Multiparameter semiautomatic polarimeter contains 4 measurement modes, including the optical rotation, specific rotation, concentration and International Sugar Scale, accuracy: 0.02°.

Features:
• Multiparameter semiautomatic polarimeter is installed with a 5.6 inches touch screen.
• LED and interference filters provide a reliable and long-life light source.
• Zero point calibration can adjust and eliminate measurement errors.
• Built-in temperature sensor automatically compensates for and converts measurements to the
  specific rotation value.

Semiautomatic Polarimeter

• Selectable tube lengths include 100 and 200 mm, or manually enter a desired value.
• Expanded memory stores and recalls up to 100 data sets.
• Reset function automatically resumes all settings back to the factory defaults.
• On-screen operation guide helps users to quickly use the polarimeter.

Applications:
• Chemical and pharmaceutical industries
• Research and education

   Model


POL-200

   Range


±90°/ ±130°Z

   Resolution


0.005°

   Accuracy


±0.02°/ ±0.05°Z

   Calibration


1 to 3 points

   Light Source


LED with interference filters

   Wavelength


589.4 nm

   Tube Length


50 / 100 / 200 mm

   Memory


Stores up to 100 data sets

   Display


5.6 inches TFT touch screen

   Power Supply


AC 220V / 50Hz

   Dimensions


500 × 300 × 220 mm

   Weight


7.5 kg

   Ordering Code

Polarimeter Includes

   POL-200

Polarimeter tubes 100 and 200 mm

Sealing rings

Power cable

Items Description

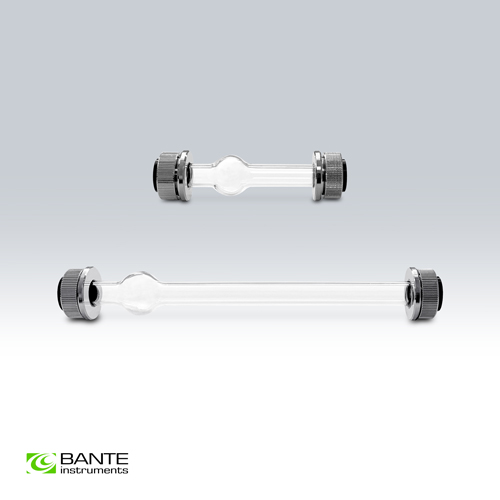

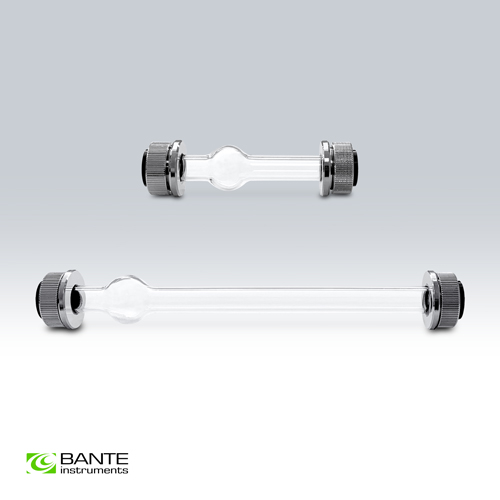

Polarimeter Tubes For filling the sample solution (length 100/200mm)

   Ordering Code

Dimensions and Weights

   POL-200

65 × 30 × 50 cm, 8 kg
