Dissolved Oxygen Meters

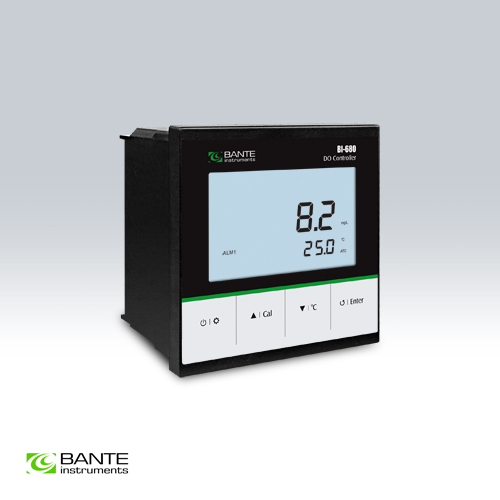

BI-680 Online Dissolved Oxygen Controller
Industrial online dissolved oxygen controller, 1 or 2 point calibration, 4 to 20 mA outputs, the meter is suitable for monitoring dissolved oxygen concentration and % saturation in water.
Features:
• Economical online dissolved oxygen controller is equipped with a polarographic electrode.
• 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
• Salinity and barometric pressure compensations eliminate measurement errors.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Setup menu allows setting the number of calibration points, measurement unit, alarm limits,
hysteresis value, 4 to 20 mA output, etc.
• Reset function automatically restores all settings to the factory defaults.
Model | BI-680 | |
Dissolved Oxygen | ||
Range | 0.00 to 20.00 mg/L | |
Resolution | 0.01 mg/L | |
Accuracy | ±0.5 mg/L | |
% Saturation of Oxygen | ||
Range | 0.0 to 200.0% | |
Resolution | 0.1% | |
Accuracy | ±2.0% | |
Communication | ||
Signal Output | 4 to 20 mA | |
High/Low Limit Alarm |
| 0.00 to 20.00 mg/L, selectable |
Load |
| Maximum 500 Ω |
Communication Interface | RS485 | |

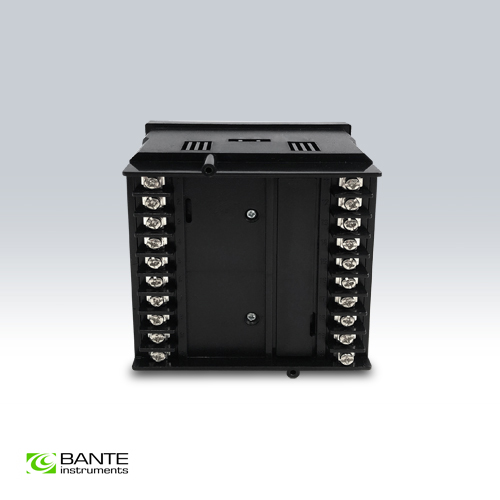

Connection Terminals | Detachable screw terminals | |
Other Specifications | ||
Calibration | 1 or 2 points | |
Temperature Compensation | 0 to 40°C / 32 to 104°F, automatic | |
Pressure Correction | 60.0 to 112.5 kPa / 450 to 850 mmHg | |
Salinity Correction | 0.0 to 35.0 g/L | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Power Supply | DC 24V | |
Dimensions | 96 × 96 × 75 mm | |
Weight | 350 g |
Ordering Code | Meter Includes |

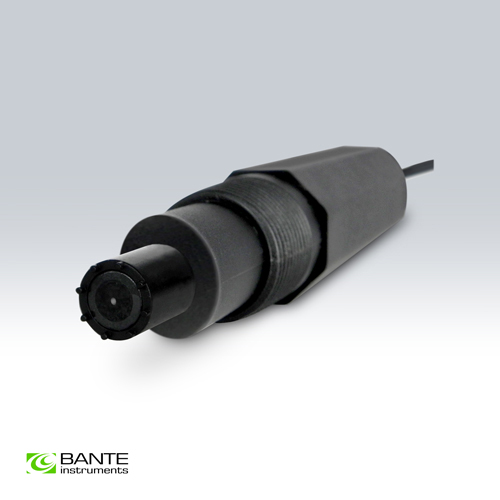

BI-680 | IE-80T industrial dissolved oxygen electrode |
DO electrolyte solution | |
DO membrane cap |
| Items | Description |
| IE-80T Dissolved Oxygen Electrode | For measuring the DO and % saturation of oxygen |
| Zero Oxygen Solution | For dissolved oxygen calibration |
| DO Electrolyte Solution | For filling dissolved oxygen electrode |
| DO Membrane Cap | Replacement part for dissolved oxygen electrode |
Ordering Code | Dimensions and Weights |
BI-680 | 28 × 22 × 15 cm, 1.5 kg |
