Turbidity Meters

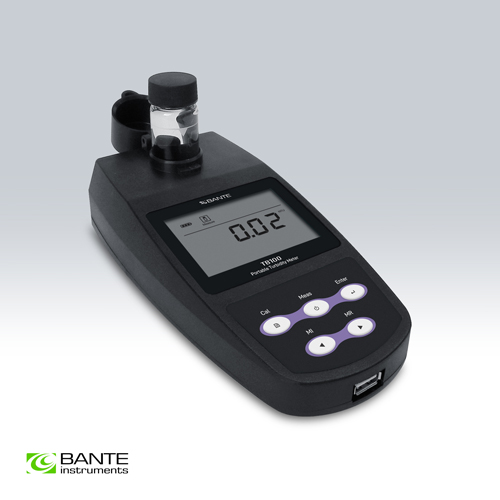

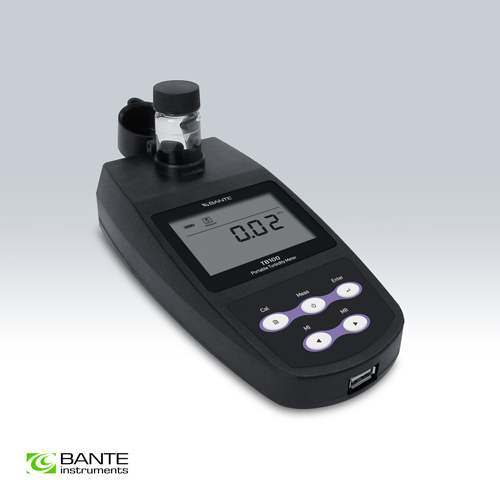

TB100 Portable Turbidity Meter

High-performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units, the meter is suitable for process control and field use.

Features:
• High-performance portable turbidity meter meets the design criteria in ISO 7027.
• 2 to 5 points calibration using the Formazin Standards.
• Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
• Single measurement mode automatically senses and locks a stable reading.
• Continuous measurement mode can be used for indexing or matching the sample vials.

Portable Turbidity Meter

• Auto-power off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, resolution, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 100 data sets.
• USB communication interface for data transfer or connecting a power adapter to the meter.

Portable Turbidity Meter

Applications:
• Drinking water and beverage industry
• Environmental monitoring and other industrial applications

   Model


TB100

   Turbidity



   Range


0 to 1100 NTU / 0 to 275 EBC / 0 to 9999 ASBC

   Resolution


0.01, 0.1, 1, automatic

   Accuracy


±2% of reading (0~500 NTU), ±3% of reading (501~1000 NTU)

   Calibration


2 to 5 points

   Calibration Standards


0.02 / 10 / 200 / 500 / 1000 NTU

   Other Specifications



   Light Source


Infrared-emitting diode, wavelength 850 nm

   Detector


Silicon photodiode

   Stray Light


< 0.02 NTU

   Sample Vial


60 × 25(Ø) mm

   Sample Volume


20 mL

   Auto-Power Off


15 minutes after last key pressed

   Memory


Stores up to 100 data sets

   Output


USB communication interface

   Display


Custom LCD (60 × 40 mm)

   Power Supply


3 × 1.5V AA batteries or 5V DC power adapter

   Dimensions


180 × 85 × 70 mm

   Weight


300 g

   Ordering Code

Meter Includes

   TB100

Turbidity standards 0.02, 200, 500, 1000 NTU

Glass sample vials

Lint-free cloth

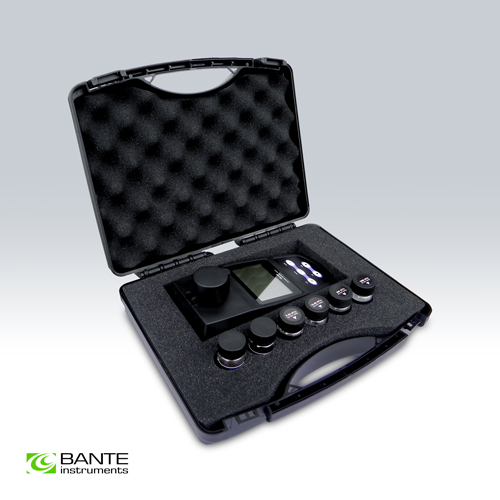

Carrying case

Items Description

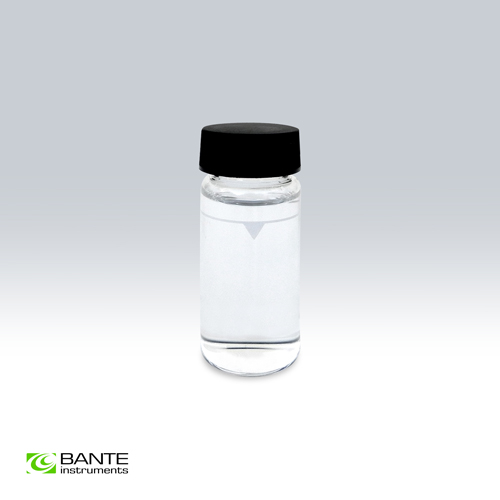

Turbidity Sample Vial Capacity 20 mL
Turbidity Standard Solutions 0.02, 200, 500, 1000 NTU
USB Cable For transferring data or connecting power adapter
5V DC Power Adapter For connecting external power source

   Ordering Code

Dimensions and Weights

   TB100

28 × 8 × 25 cm, 1.5 kg
