Conductivity Meters

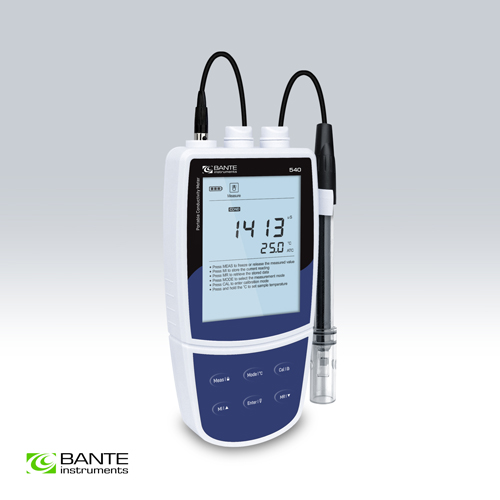

Bante540 Portable Conductivity/TDS/Salinity Meter

Professional portable conductivity meter, selectable TDS, salinity and resistivity measurement modes, 1 to 5 points calibration, setup menu contains 12 options, accuracy: 0.5% F.S.

Features:
• Professional portable conductivity meter is equipped with a backlit LCD display.
• 1 to 5 points calibration with automatic recognition for conductivity standards.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear and
  pure water compensations, seawater and practical salinity measurement modes.

Portable Conductivity TDS Salinity Meter

• Automatic temperature compensation corrects conductivity measurements to the reference
  temperature.
• Auto-read function senses and locks the measurement endpoint.
• Calibration due alarm reminds user to calibrate the meter regularly.
• Calibration log shows the calibration points and factors.

Portable Conductivity TDS Salinity Meter

• Setup menu allows setting the number of calibration points, stability criteria, temperature unit,
  date and time, etc.
• Reset function automatically restores all settings to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface enables easy data transfer to a PC.
• Multi-mode power scheme (batteries, power adapter, USB port) ensures the smooth operation
  of the meter.

   Model


Bante540

   Conductivity



   Range


0 to 20.00, 200.0, 2000 µS/cm, 20.00, 200.0 mS/cm

   Resolution


0.001, 0.01, 0.1, 1, automatic

   Accuracy


±0.5% F.S.

   Calibration


1 to 5 points

   Calibration Solutions


10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS

   TDS



   Range

0 to 10.00, 100.0, 1000 ppm, 10.00, 200.0 ppt

   Resolution

0.01, 0.1, 1, automatic

   Accuracy

±1% F.S.

   TDS Conversion Factor

0.1 to 1.0 (default 0.5)

   Salinity



   Range


0.00 to 80.00 ppt / 0.00 to 42.00 psu

   Resolution


0.01

   Accuracy


±1% F.S.

   Resistivity



   Range


0.00 to 20.00 MΩ

   Resolution


0.01

   Accuracy


±1% F.S.

   Temperature



   Range


0 to 105°C / 32 to 221°F

   Resolution


0.1°C/°F

   Accuracy


±0.5°C / ±0.9°F

   Calibration


1 point

   Calibration Range


Reading ±10°C/°F

   Other Specifications



   Temperature Compensation


0 to 100°C / 32 to 212°F, manual or automatic

   Temperature Coefficient

0.0 to 10.0%/°C

   Pure Water Compensation

Yes

   Reference Temperature

20 / 25°C

   Cell Constant

K=0.1 / 1 / 10 / Custom

   Hold Function

Manual / Auto-read measurement endpoint

   Stability Criteria

Low / High

   Calibration Due Alarm

1 to 31 days or off

   Auto-Power Off

10 / 20 / 30 minutes after last key pressed

   Memory

Stores up to 500 data sets

   Output

USB communication interface

   Connector

6-pin mini-DIN, 3.5 mm jack socket

   Display

Custom LCD (80 × 60 mm)

   Power Supply

3 × 1.5V AA batteries or 5V DC power adapter

   Battery Life


Approximately 150 hours without backlight

   Environmental Conditions


0 to 50°C / 32 to 122°F, relative humidity < 80%

   Dimensions


170 × 85 × 30 mm

   Weight


300 g

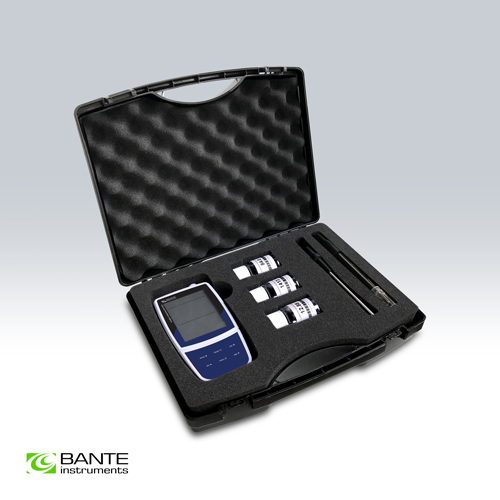

   Ordering Code

Meter Includes

   Bante540-S

CON-1 conductivity electrode

TP-10K temperature probe

Conductivity standard solutions 84 µS/cm, 1413 µS/cm, 12.88 mS/cm

Electrode clip

Carrying case

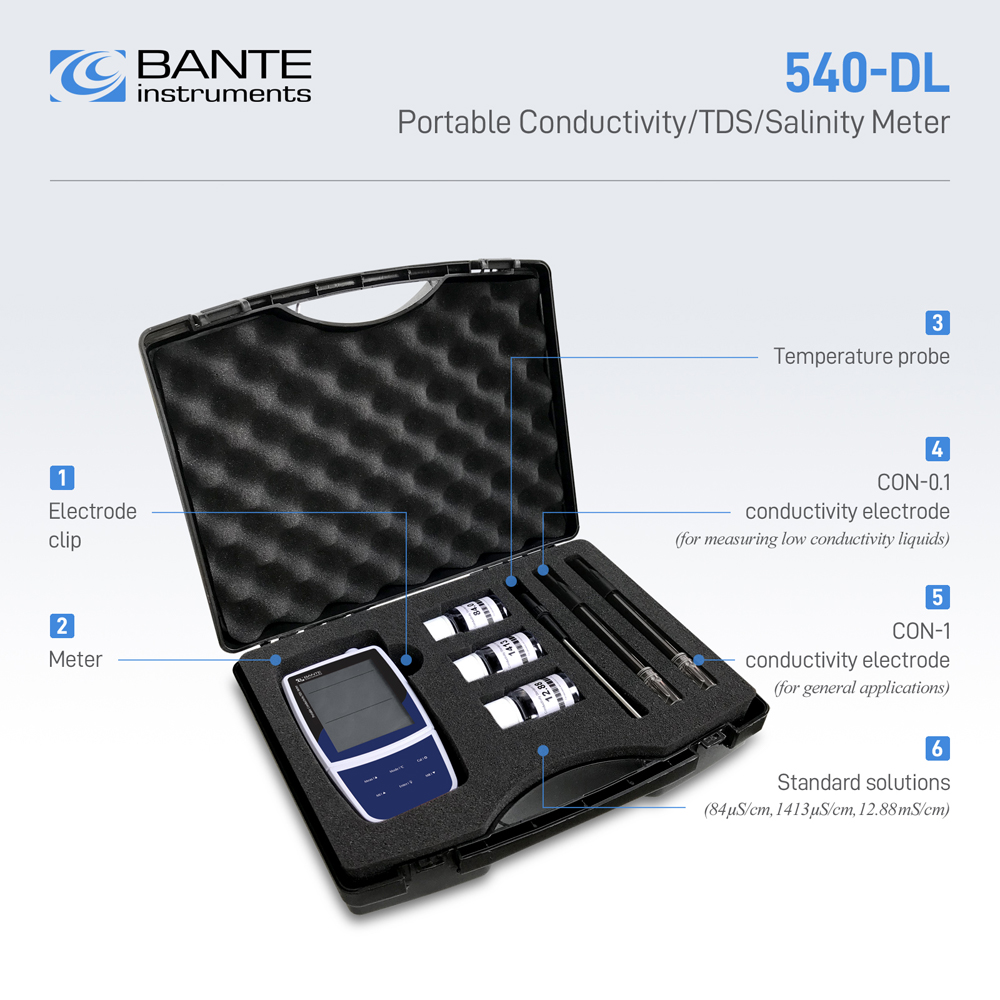

   Bante540-DL

CON-0.1 conductivity electrode

CON-1 conductivity electrode

TP-10K temperature probe

Conductivity standard solutions 84 µS/cm, 1413 µS/cm, 12.88 mS/cm

Electrode clip

Carrying case

   Bante540-DH

CON-1 conductivity electrode

CON-10 conductivity electrode

TP-10K temperature probe

Conductivity standard solutions 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm

Electrode clip

Carrying case

Items Description
CON-0.1 Conductivity Electrode For measuring the pure water
CON-1 Conductivity Electrode For measuring the general water samples
CON-10 Conductivity Electrode For measuring the high conductivity samples
TP-10K Temperature Probe For temperature compensation and measurement
Conductivity Flow Cell For measuring the pure water below 10 µS/cm
Conductivity Standard Solution For conductivity calibration
USB Cable For transferring data or connecting power adapter
5V DC Power Adapter For connecting external power source

   Ordering Code

Dimensions and Weights

   Bante540-S

35 × 10 × 30 cm, 1.5 kg

   Bante540-DL

35 × 10 × 30 cm, 1.5 kg

   Bante540-DH

35 × 10 × 30 cm, 1.5 kg
