TDS Meters

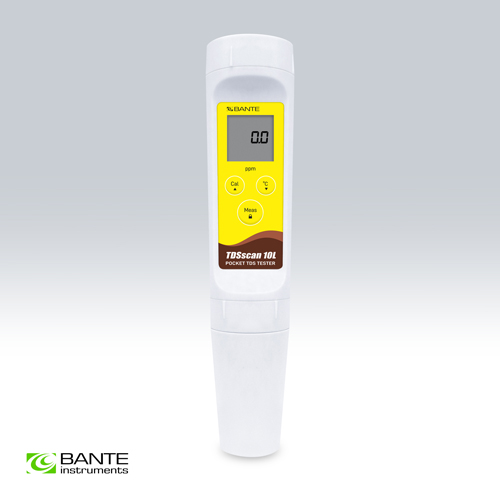

TDSscan10L Pocket TDS Tester

Single-range pocket TDS tester, 1 point calibration, suitable for measuring total dissolved solids in pure water, measurement range: 0.5 to 100 ppm.

Features:
• Low-range pocket TDS tester allows adjusting the conversion factor.
• 1 point push-button calibration ensures accurate measurement over the entire range.
• Hold function momentarily freezes reading for easy viewing and recording.
• Auto-power off effectively conserves battery life.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.

Pocket TDS Tester

Applications:
• Pure water and drinking water
• Education and other industrial applications

   Model


TDSscan10L

   TDS



   Range


0.5 to 100.0 ppm

   Resolution


0.1 ppm

   Accuracy


±1% F.S.

   Calibration


1 point

   Calibration Solution


71.8 ppm

   Temperature



   Range


0 to 50°C

   Resolution


1°C

   Accuracy


±1°C

   Other Specifications



   Temperature Compensation


0 to 50°C / 32 to 122°F, automatic

   TDS Conversion Factor


0.4 to 1.0 (default 0.5)

   Hold Function


Manual

   Auto-Power Off


8 minutes after last key pressed

   Display


Single-line LCD (21 × 21 mm)

   Power Supply


3 × 1.5V LR44 micro alkaline batteries

   Battery Life


Approximately 150 hours of continuous use

   Environmental Conditions


0 to 50°C / 32 to 122°F, relative humidity < 80%

   Dimensions


185 × 40(Ø) mm

   Weight


100 g

   Ordering Code

Tester Includes

   TDSscan10L

TDS standard solution 71.8 ppm

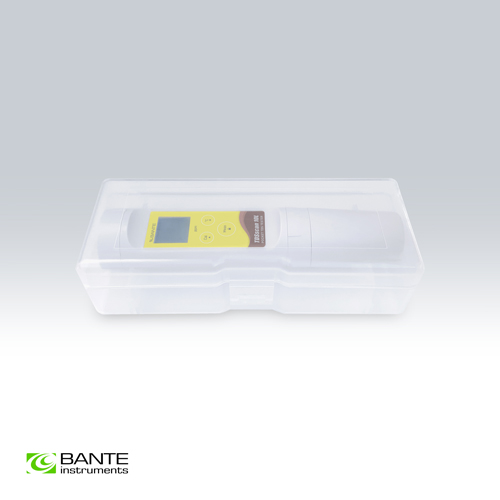

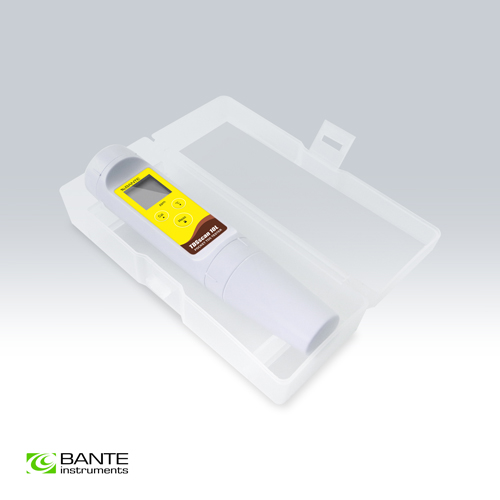

Plastic box

Items Description
E-ECSCAN-C1-100K Electrode Replacement conductivity electrode
TDS Standard Solutions For TDS calibration

   Ordering Code

Dimensions and Weights

   TDSscan10L

20 × 11 × 7 cm, 0.5 kg
