TDS Meters

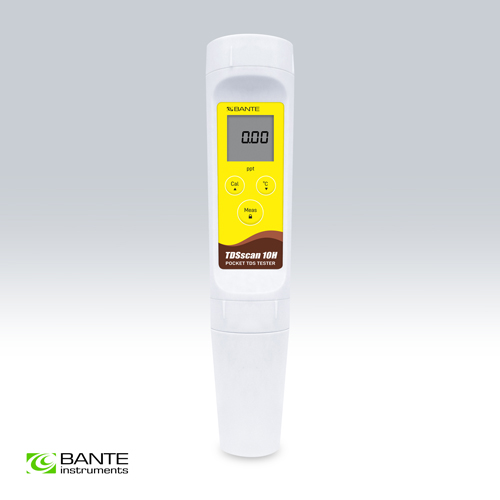

TDSscan10H Pocket TDS Tester

Economical pocket TDS tester, 1 point calibration. The meter is suitable for measuring the high concentration liquids, accuracy: 1% F.S.

Features:
• High-range pocket TDS tester allows adjusting the TDS conversion factor.
• Platinum conductivity cell provides the quick and reliable measurement results.
• 1 point push-button calibration ensures accurate measurement over the entire range.
• Hold function momentarily freezes reading for easy viewing and recording.
• Auto-Power Off effectively conserves battery life.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environment.

Pocket TDS Tester

Applications:
• Water and wastewater treatment
• Aquaculture and other industrial applications

   Model


TDSscan10H

   TDS



   Range


0.05 to 10.00 ppt

   Resolution


0.01 ppt

   Accuracy


±1% F.S.

   Calibration Point


1 point

   Calibration Solution


7.447 ppt

   Temperature



   Range


0 to 50°C

   Resolution


1°C

   Accuracy


±1°C

   Other Specifications



   Temperature Compensation


0 to 50°C / 32 to 122°F, automatic

   TDS Conversion Factor


0.4 to 1.0 (default 0.5)

   Hold Function


Manual

   Auto-Power Off


8 minutes after last key pressed

   Display


Single-line LCD (21 × 21 mm)

   Power Supply


3 × 1.5V LR44 micro alkaline batteries

   Battery Life


Approximately 150 hours of continuous use

   Environmental Conditions


0 to 50°C / 32 to 122°F, relative humidity < 80%

   Dimensions


185 × 40(Ø) mm

   Weight


100 g

   Ordering Code

Tester Includes

   TDSscan10H-E

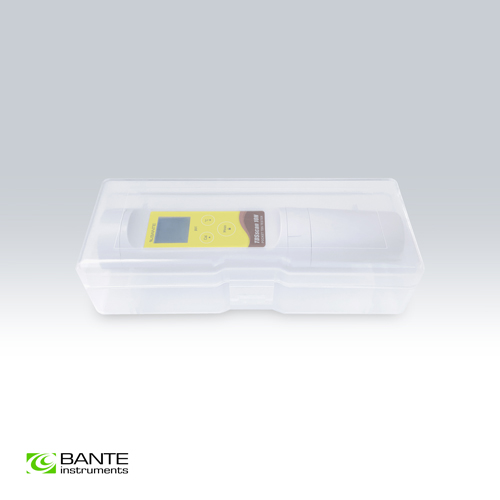

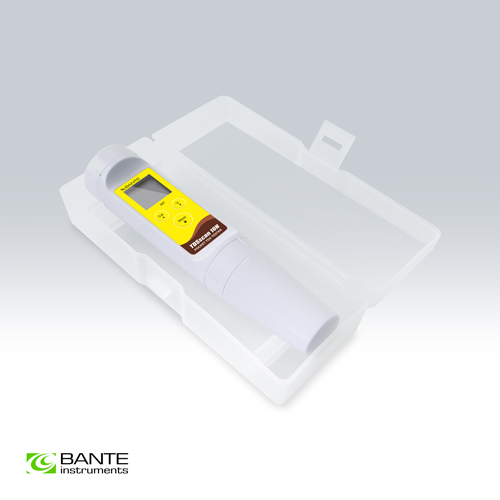

Plastic box

   TDSscan10H-K

TDS standard solution 7.447 ppt

PU box

Items Description
E-ECSCAN-C1-100K Electrode Platinum cell conductivity electrode
TDS Standard Solutions For TDS calibration

   Ordering Code

Dimensions and Weights

   TDSscan10H-E

20 × 8 × 7 cm, 0.2 kg

   TDSscan10H-K

25 × 15 × 5 cm, 1.1 kg
