TDS Meters

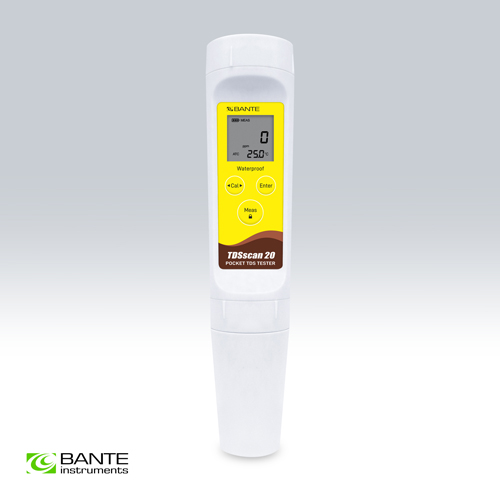

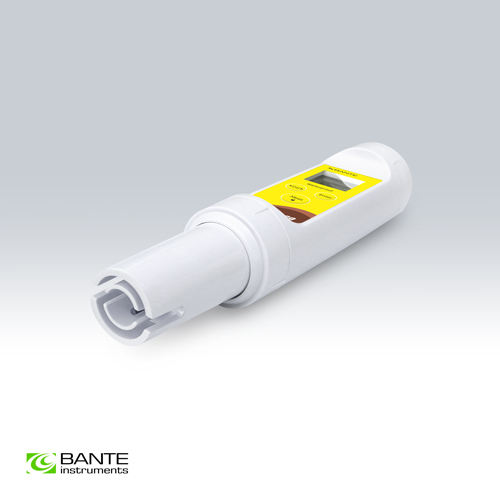

TDSscan20 Pocket TDS Tester

Multi-range pocket TDS meter, 1 to 3 points calibration, selectable TDS conversion factor, setup menu contains 5 options, accuracy: 1% F.S.

Features:
• Multi-range pocket TDS meter covers the low, mid, high ranges.
• Platinum conductivity cell provides the quick and reliable measurement results.
• 1 to 3 points calibration with automatic recognition for TDS standards.
• Auto-Read function senses and locks the measurement endpoint.

Pocket TDS Meter

• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, TDS conversion factor, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Replaceable electrode module reduces maintenance and replacement cost.
• Waterproof feature to ensure complete protection in harsh environments.

   Model


TDSscan20

   TDS



   Range


0 to 10.00, 100.0, 1000 ppm, 20.00 ppt

   Resolution


0.01, 0.1, 1, automatic

   Accuracy


±1% F.S.

   Calibration Points


1 to 3 points

   Calibration Solutions


71.8 ppm / 744.7 ppm / 7447 ppm

   Temperature



   Range


0 to 60°C / 32 to 140°F

   Resolution


0.1°C/°F

   Accuracy


±1°C / ±1.8°F

   Offset Calibration


1 point

   Calibration Range


Reading ±10°C/°F

   Other Specifications



   Temperature Compensation


0 to 60°C / 32 to 140°F, automatic

   TDS Conversion Factor

0.1 to 1.0 (default 0.5)

   Hold Function


Manual / Auto-read measurement endpoint

   Auto-Power Off


8 minutes after last key pressed

   Display


Dual-line LCD (21 × 21 mm)

   Power Supply


2 × 1.5V AAA batteries

   Battery Life


Approximately 200 hours of continuous use

   Environmental Conditions


0 to 50°C / 32 to 122°F, relative humidity < 80%

   Dimensions


185 × 40(Ø) mm

   Weight


100 g

   Ordering Code

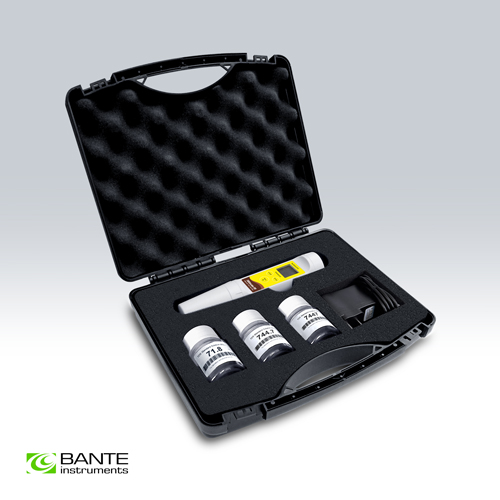

Tester Includes

   TDSscan20

TDS standard solutions 71.8 ppm, 744.7 ppm, 7447 ppm

Carrying case

Items Description
E-ECSCAN-C1-10K Electrode Platinum cell conductivity electrode
TDS Standard Solutions For TDS calibration

   Ordering Code

Dimensions and Weights

   TDSscan20

28 × 8 × 25 cm, 1.5 kg
