Electrodes

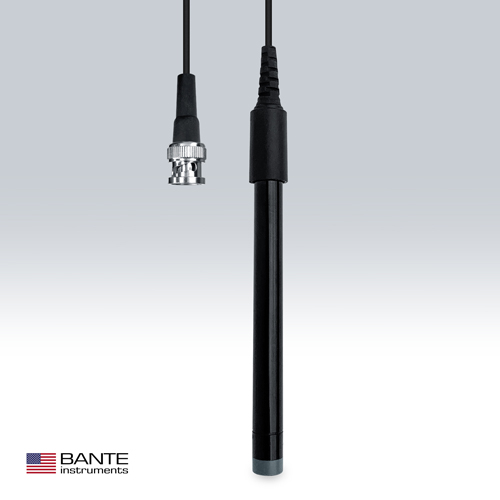

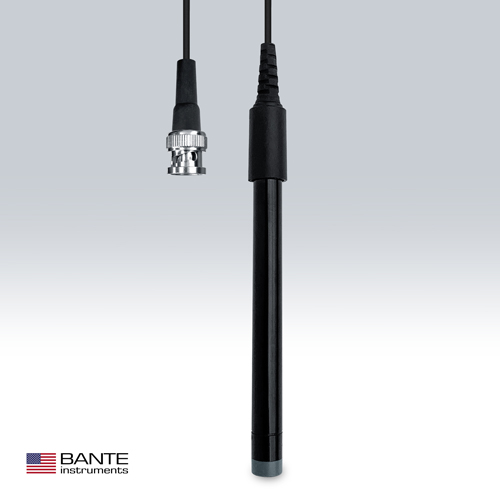

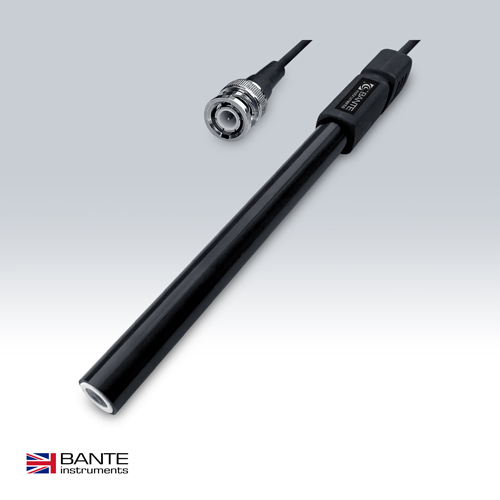

ISE-Cd Cadmium Electrode

Cadmium ion selective electrode, range: 0.1 to 11200 ppm.

Features:
• Combination cadmium ion selective electrode
• Suitable for laboratory and field applications
• No filling solutions
• No membrane replacements
• Built in dry reference electrode
• Long lifetime

   Model


ISE-Cd

   Concentration Range


0.1 to 11200 ppm

   Slope


24 to 29 mV/decade

   pH Range


3 to 7 pH

   Operating Temperature


5 to 50°C / 41 to 122°F

   Interferences


Cu²⁺, Hg²⁺, Ag⁺

   Body Type


Epoxy

   Cable Length


1 m / 3.3 ft

   Connector


BNC

   Dimensions


150 × 12(Ø) mm

   Weight


70 g

   Ordering Code

Electrode Includes

   ISE-Cd

Cadmium standard solution 1000 ppm (30 mL)

Ionic strength adjuster (30 mL)

Items Description
Ion Standard Solutions For ion concentration calibration
Ionic Strength Adjusters For adjusting the pH and background ionic strength

   Ordering Code

Dimensions and Weights

   ISE-Cd

23 × 10 × 5 cm, 0.1 kg
