Electrodes

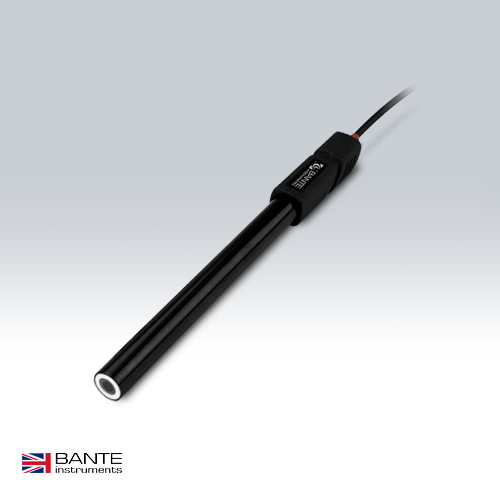

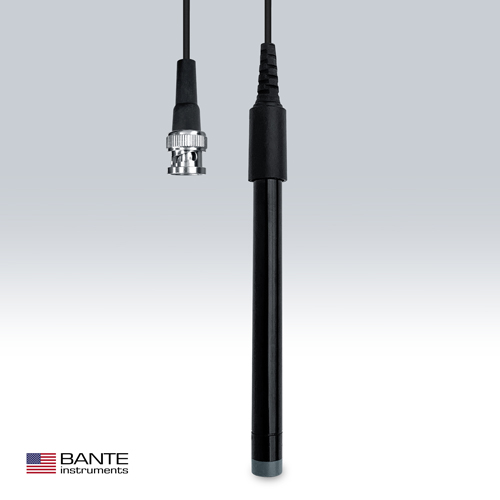

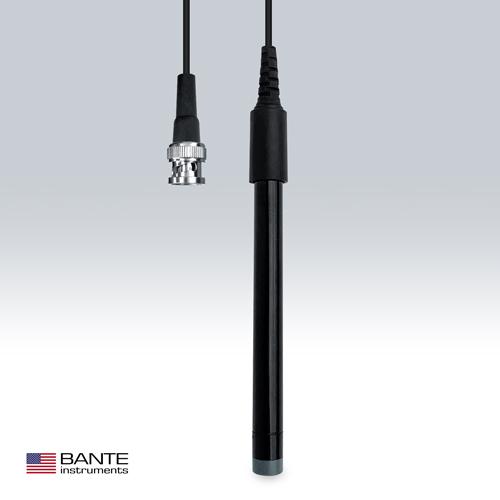

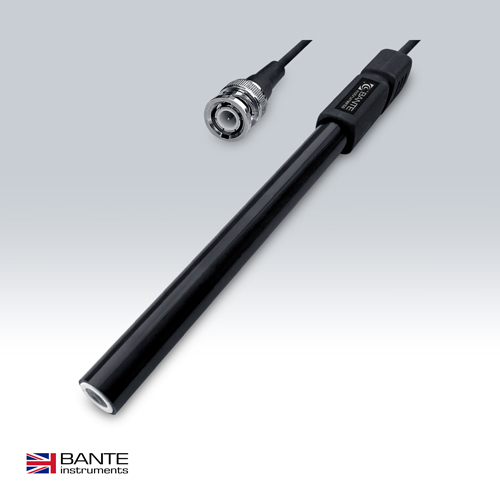

ISE-Ag Silver Electrode

Silver ion selective electrode, range: 0.01 to 107900 ppm.

Features:
• Combination silver ion selective electrode
• Suitable for laboratory and field applications
• No filling solutions
• No membrane replacements
• Built in dry reference electrode
• Long lifetime

   Model


ISE-Ag

   Concentration Range


0.01 to 107900 ppm

   Slope


54 to 59 mV/decade

   pH Range


1 to 9 pH

   Operating Temperature


5 to 50°C / 41 to 122°F

   Interferences


Hg²

   Body Type


Epoxy

   Cable Length


1 m / 3.3 ft

   Connector


BNC

   Dimensions


150 × 12(Ø) mm

   Weight


70 g

   Ordering Code

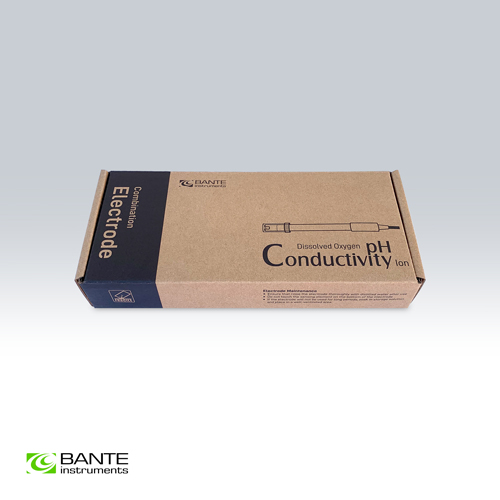

Electrode Includes

   ISE-Ag

Silver standard solution 1000 ppm (30 mL)

Ionic strength adjuster (30 mL)

Items Description
Ion Standard Solutions For ion concentration calibration
Ionic Strength Adjusters For adjusting the pH and background ionic strength

   Ordering Code

Dimensions and Weights

   ISE-Ag

23 × 10 × 5 cm, 0.1 kg
