pH Meters

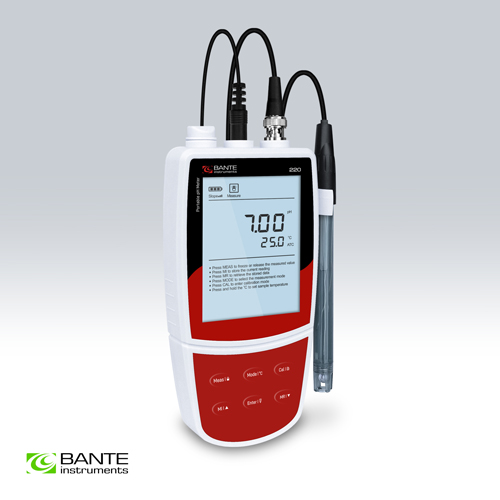

Bante220 Portable pH Meter

Economy portable pH meter, 1 to 3 points calibration, Automatic Temperature Compensation, setup menu contains 7 options, accuracy: 0.01pH.

Features:
• Economy portable pH meter is equipped with a backlit LCD display.
• 1 to 3 points calibration with automatic recognition for USA and NIST buffers.
• Automatic electrode diagnosis helps the user decide whether to replace the pH electrode.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.

Portable pH Meter

• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the pH buffer group, number of calibration points, temperature
  unit, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 100 data sets.
• USB communication interface for data transfer or connecting a power adapter to meter.

   Model


Bante220

   pH



   Range


-2.00 to 20.00pH

   Resolution


0.01pH

   Accuracy


±0.01pH

   Calibration Points


1 to 3 points

   pH Buffer Options


USA (pH4.01/7.00/10.01), NIST (pH4.01/6.86/9.18)

   mV



   Range


±1999mV

   Resolution


1mV

   Accuracy


±1mV

   Temperature



   Range


0 to 105°C/32 to 221°F

   Resolution


0.1°C/0.1°F

   Accuracy


±0.5°C/±0.9°F

   Offset Calibration


1 point

   Calibration Range


Reading ±10°C

   General Specifications


   Temperature Compensation


0 to 100°C/32 to 212°F, manual or automatic

   Auto-Power Off

30 minutes after last key pressed

   Memory

Stores up to 100 data sets

   Output

USB communication interface

   Connector

BNC, 3.5mm jack socket

   Display

Custom LCD (80×60mm)

   Power

3×1.5V AA batteries or DC5V power adapter

   Battery Life

Approximately 150 hours (turn off the backlight)

   Dimensions

170(L)×85(W)×30(H)mm

   Weight

300g

   Order Code

Accessories

   Bante220-CN

E201-BNC pH electrode

TP-10K temperature probe

pH4.01/7.00/10.01 buffer solutions

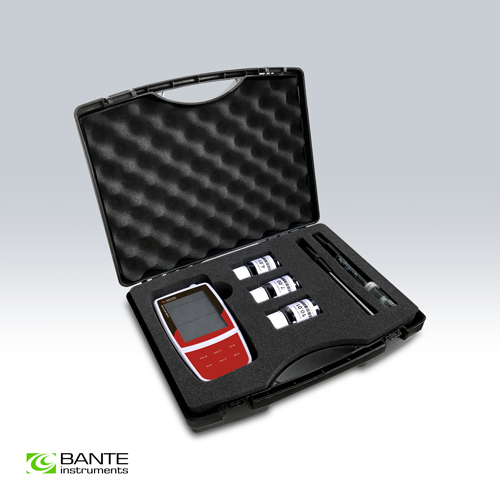

Carrying case

   Bante220-UK



P11 glass pH electrode

TP-10K temperature probe

pH4.01/7.00/10.01 buffer solutions

Carrying case

Items Description
P11 pH Electrode For the general applications
P11-LiCl pH Electrode For the non-aqueous samples
P11-HA pH Electrode For the high alkalines samples
P11-NA pH Electrode For the biofuels
P12 pH Electrode For the sample in the test tube
P13 pH Electrode For the micro-volume samples
P15 pH Electrode For the low conductivity samples
P16 pH Electrode For the Tris buffers
P18 pH Electrode For the slurries and soils
P19 pH Electrode For the semisolids
P21 pH Electrode For the colloids
P22 pH Electrode For the high temperature samples
TP-10K Temperature Probe For the temperature measurement
pH Buffer Solutions 480ml/bottle

   Order Code

Carton Dimensions (L×W×H)

Weight

   Bante220-CN

340×290×80mm

1.5kg

   Bante220-UK

340×290×80mm

1.5kg
