pH Meters

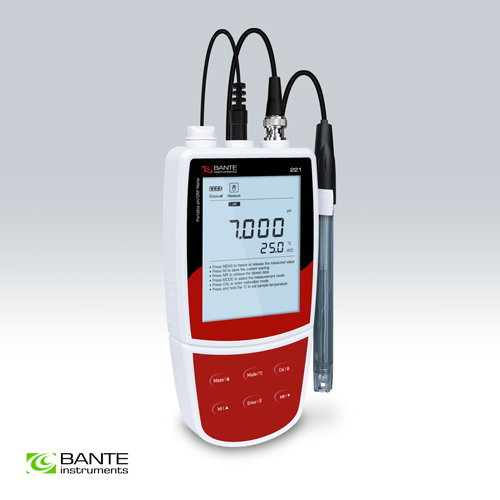

Bante221 Portable pH Meter

Professional portable pH meter with relative mV measurement mode, 1 to 5 points calibration, setup menu contains 9 options, accuracy: 0.002pH.

pH Mode:
• Professional portable pH meter is equipped with a backlit LCD display.
• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
• Automatic electrode diagnosis shows the pH slope and offset.
• Automatic temperature compensation ensures accurate readings over the entire range.
• Calibration due alarm prompts user to calibrate the meter regularly.

ORP Mode:
• 1 point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt modes ensure the reliable ORP measurements.

Portable pH Meter

Other Features:
• Auto-Read function senses and locks the measurement endpoint.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the pH buffer group, number of calibration points, resolution,
  stability criteria, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface is easy to transfer data to PC.
• Multi-mode power scheme (batteries, power adapter and USB port) ensures that using the
  meter smoothly.

   Model


Bante221

   pH



   Range


-2.000 to 20.000pH

   Resolution


0.001, 0.01, 0.1pH, selectable

   Accuracy


±0.002pH

   Calibration Points


1 to 5 points

   pH Buffer Options


USA, NIST, DIN, 2 custom buffers

   ORP



   Range


±1999.9mV

   Resolution


0.1, 1mV, selectable

   Accuracy


±0.2mV

   Calibration Points


1 point

   Measurement Modes


Relative or absolute mV

   Temperature



   Range


0 to 105°C/32 to 221°F

   Resolution


0.1°C/0.1°F

   Accuracy


±0.5°C/±0.9°F

   Offset Calibration


1 point

   Calibration Range


Reading ±10°C

   General Specifications



   Temperature Compensation


0 to 100°C/32 to 212°F, manual or automatic

   Stability Criteria

Low or high

   Calibration Due Alarm


1 to 31 days or off

   Auto-Power Off

10, 20 or 30 minutes after last key pressed

   Memory

Stores up to 500 data sets

   Output

USB communication interface

   Connector

BNC, 3.5mm jack socket

   Display

Custom LCD (80×60mm)

   Power

3×1.5V AA batteries or DC5V power adapter

   Battery Life

Approximately 150 hours (turn off the backlight)

   Dimensions


170(L)×85(W)×30(H)mm

   Weight


300g

   Order Code

Accessories

   Bante221-CN

E201-BNC pH electrode

TP-10K temperature probe

pH4.01/7.00/10.01 buffer solutions

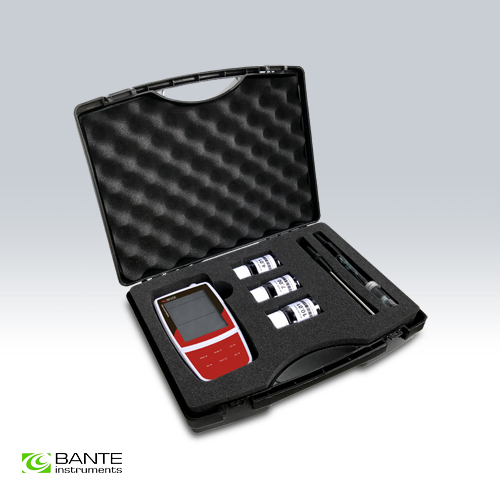

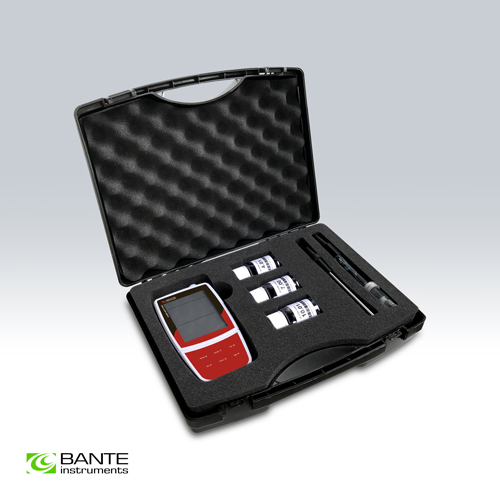

Carrying case

   Bante221-UK



P11 glass pH electrode

TP-10K temperature probe

pH4.01/7.00/10.01 buffer solutions

Carrying case

Items Description
P11 pH Electrode For the general applications
P11-LiCl pH Electrode For the non-aqueous samples
P11-HA pH Electrode For the high alkalines samples
P11-NA pH Electrode For the biofuels
P12 pH Electrode For the sample in the test tube
P13 pH Electrode For the micro-volume samples
P15 pH Electrode For the low conductivity samples
P16 pH Electrode For the Tris buffers
P18 pH Electrode For the slurries and soils
P19 pH Electrode For the semisolids
P21 pH Electrode For the colloids
P22 pH Electrode For the high temperature samples
501 ORP Electrode For the sample with strong redox potential
502 ORP Electrode For the sample with weak redox potential
TP-10K Temperature Probe For the temperature measurement
pH Buffer Solutions 480ml/bottle

   Order Code

Carton Dimensions (L×W×H)

Weight

   Bante221-CN

340×290×80mm

1.5kg

   Bante221-UK

340×290×80mm

1.5kg
