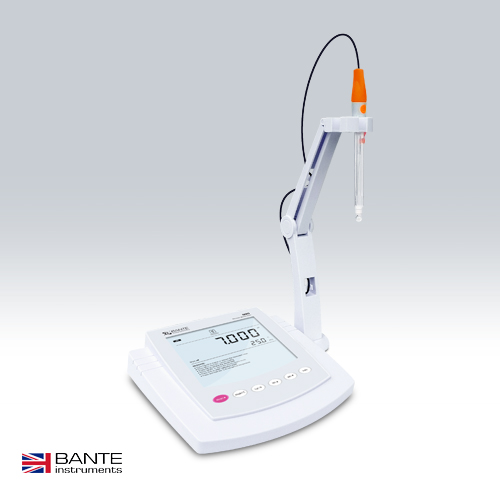

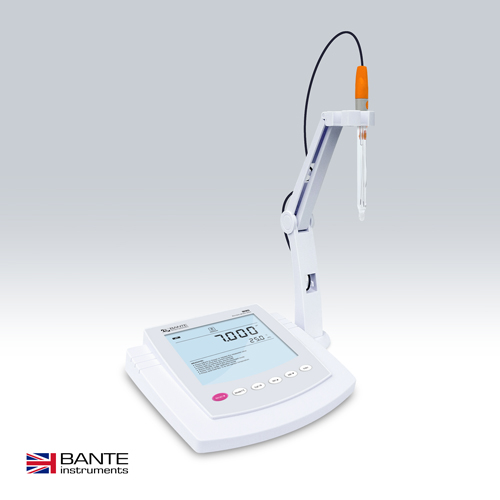

Bante930 Benchtop pH/Ion Meter
Precision benchtop pH/ion meter, 1 to 5 points calibration, selectable concentration units. The meter is suitable for measuring the pH, ORP and ion concentration.
pH Mode:
• Precision benchtop pH/ion meter is equipped with a large backlit LCD display.
• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
• Automatic electrode diagnosis shows the pH slope and offset.
ORP Mode:
• 1 point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt modes ensure the reliable ORP measurements.
Ion Concentration Mode:
• 2 to 5 points calibration, including the 8 concentration points can be selected.
• Direct ion concentration readout simplifies the measurement process.
• Automatic electrode diagnosis shows the calibration points and slopes.
• Selectable concentration units (ppm, mg/L, mol/L) and ionic valency.
Other Features:
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Setup menu allows setting the number of calibration points, stability criteria, temperature
unit, date and time, auto-power off, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface for data transfer and timed interval readings.
Model | Bante930 | |
pH | ||
Range | -2.000 to 20.000pH | |
Resolution | 0.001, 0.01, 0.1pH, selectable | |
Accuracy | ±0.002pH | |
Calibration Points | 1 to 5 points | |
pH Buffer Options | USA, NIST, DIN, 2 custom buffers | |
ORP | ||
Range | ±1999.9mV | |
Resolution | 0.1, 1mV, selectable | |
Accuracy | ±0.2mV | |
Calibration Points | 1 point | |
Measurement Modes | Relative or absolute mV | |
Ion Concentration | ||
Range | 0.001 to 19999 (deponding on the range of ISE) | |
Resolution | 0.001, 0.01, 0.1, 1 | |
Accuracy | ±0.5% F.S. (monovalent), ±1% F.S. (divalent) | |
Calibration Points | 2 to 5 points | |
Calibration Solutions |
| 0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000 |
Measurement Units | ppm, mg/L, mol/L, mmol/L | |
Temperature | ||
Range | 0 to 105°C/32 to 221°F | |
Resolution | 0.1°C/0.1°F | |
Accuracy | ±0.5°C/±0.9°F | |
Offset Calibration | 1 point | |
Calibration Range | Reading ±10°C | |
General Specifications | ||
Temperature Compensation | 0 to 100°C/32 to 212°F, manual or automatic | |
Stability Criteria |
| Low or high |
Calibration Due Alarm | 1 to 31 days or off | |
Memory |
| Stores up to 500 data sets |
Output |
| USB communication interface |
Connector |
| BNC, 3.5mm jack socket |
Display |
| Custom LCD (125×100mm) |
Power |
| DC5V, using AC adapter, 220V/50Hz |
Dimensions | 210(L)×188(W)×60(H)mm | |
Weight | 1.5kg |
Order Code | Accessories |
Bante930-CN | E201-BNC pH electrode |
TP-10K temperature probe | |
pH4.01/7.00/10.01 buffer sachets | |
USB cable | |
DC5V power adapter | |
Bante930-UK | P11 glass pH electrode |
TP-10K temperature probe | |
pH4.01/7.00/10.01 buffer sachets | |
USB cable | |
DC5V power adapter |
| Items | Description |
| P11 pH Electrode | For the general applications |
| P11-LiCl pH Electrode | For the non-aqueous samples |
| P11-HA pH Electrode | For the high alkalines samples |
| P11-NA pH Electrode | For the biofuels |
| P12 pH Electrode | For the sample in the test tube |
| P13 pH Electrode | For the micro-volume samples |
| P15 pH Electrode | For the low conductivity samples |
| P16 pH Electrode | For the Tris buffers |
| P18 pH Electrode | For the slurries and soils |
| P19 pH Electrode | For the semisolids |
| P21 pH Electrode | For the colloids |
| P22 pH Electrode | For the high temperature samples |
| 501 ORP Electrode | For the sample with strong redox potential |
| 502 ORP Electrode | For the sample with weak redox potential |
| Na-US Sodium Electrode | Range: 0.1 to 23000ppm |
| CL-US Chloride Electrode | Range: 1.8 to 35500ppm |
| F-US Fluoride Electrode | Range: 0.02ppm to saturation |
| Ca-US Calcium Electrode | Range: 0.02 to 4000ppm |
| NO3-US Nitrate Electrode | Range: 0.4 to 62000ppm |
| Br-US Bromide Electrode | Range: 0.4 to 79900ppm |
| NH4-US Ammonium Electrode | Range: 0.1 to 18000ppm |
| Cn-US Cyanide Electrode | Range: 0.2 to 260ppm |
| Cd-US Cadmium Electrode | Range: 0.01 to 11200ppm |
| Cu-US Copper Electrode | Range: 0.006 to 6400ppm |
| I-US Iodide Electrode | Range: 0.06 to 127000ppm |
| Pb-US Lead Electrode | Range: 0.2 to 20700ppm |
| Ag-US Silver Electrode | Range: 0.01 to 107900ppm |
| K-US Potassium Electrode | Range: 0.04 to 39000ppm |
| S-US Sulphide Electrode | Range: 0.003 to 32100ppm |
| NH3-US Ammonia Electrode | Range: 0.02 to 17000ppm |
| TP-10K Temperature Probe | For the temperature measurement |
| pH Buffer Solutions | 480ml/bottle |
| Ion Standard Solutions | 480ml/bottle |
| Ionic Strength Adjuster | 480ml/bottle |
Order Code | Carton Dimensions (L×W×H) | Weight |
Bante930-CN | 310×260×200mm | 1.7kg |
Bante930-UK | 310×260×200mm | 1.7kg |
